Momentary On(On) Foot Switch DPDT

SKU 103117

MPN: 103117

261 in stock
Original price £3.95 - Original price £3.95
Original price
£3.95 Inc VAT
£3.95 - £3.95
Current price £3.95 Inc VAT

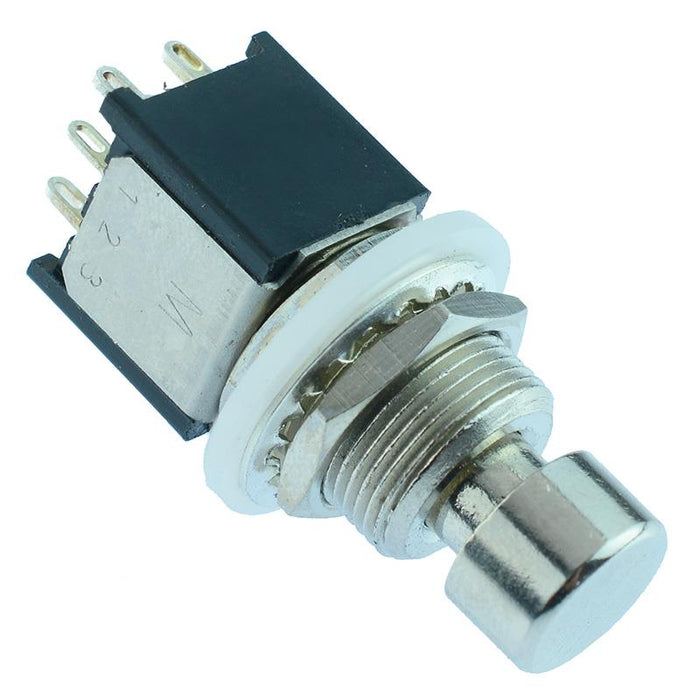

Heavy duty footswitch with a momentary operation designed to be operated by foot. The switch has solder lug terminals and is suitable for panel mounting making it ideal for music applications.

  • DPDT contacts
  • On-(On) operation
  • Solder lug terminals
  • Requires 12mm panel cut-out
  • Soft touch button
  • 2A maximum current
  • 250VAC maximum voltage
  • Dimensions: 37 x 12.2 x 13.4mm (Height x Width x Length)
  • Maximum Panel Thickness: 4mm
  • Specification
    Actuation Momentary
    Back order lead time 40 Days
    Contact configuration DPDT
    Contact rating 2A 250VAC, 4A 125VAC
    Current rating 4A @ 125VAC
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Panel cut out 12mm
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 250VAC
