Momentary Automotive Plunger Switch 20A 12V
SKU 489305
MPN: ASW-19
Availability:
289 in stock
Original price
£1.05
-
Original price
£1.05
Original price
£1.05
Inc VAT
£1.05
-
£1.05
Current price
£1.05
Inc VAT
Telescopic plunger push button switch featuring a momentary action and suitable for use with doors, bonnets and boots in automotive applications.

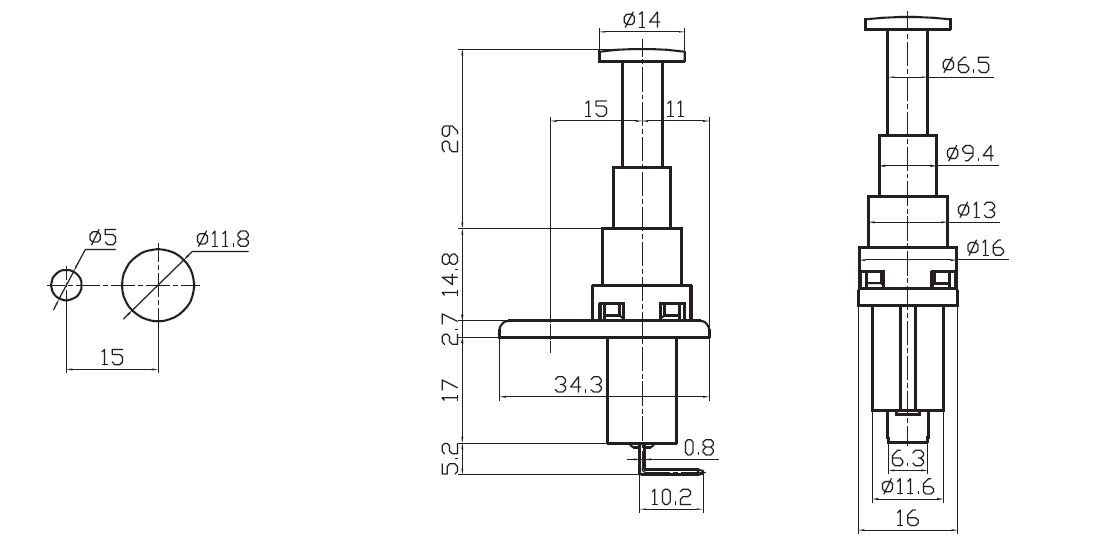

Rating: 20A 12VDC Action: On-(Off) 6.3mm quick connect terminal Dimensions: 68.7 x 34.3 x 16mm (height x length x width)
Specification
| Actuation | Momentary |
| Back order lead time | 120 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 11.8mm |
| Switch operation | On-(Off) |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
