Momentary Automotive Door Switch 20A 12V
SKU 489306
MPN: ASW-18
Availability:
190 in stock
Original price
£0.94
-
Original price
£0.94
Original price
£0.94
Inc VAT
£0.94
-
£0.94
Current price
£0.94
Inc VAT
Plunger push button switch featuring a momentary action and suitable for use with doors in automotive applications.

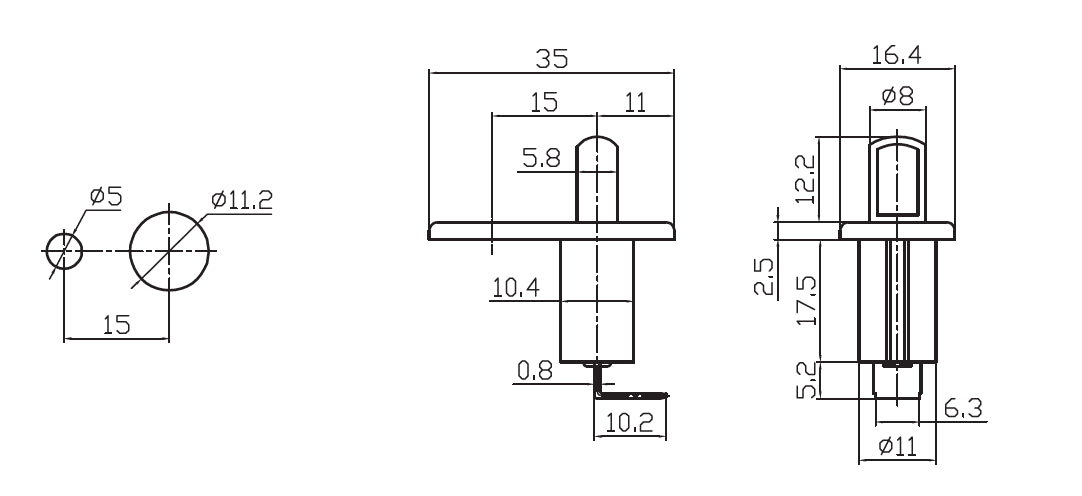

Rating: 20A 12VDC Action: On-(Off) 6.3mm quick connect terminal Dimensions: 37.4 x 35 x 16.4mm (height x length x width)
Specification
| Actuation | Momentary |
| Back order lead time | 120 Days |
| Colour | Black |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 11.2mm |
| Switch operation | On-(Off) |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
