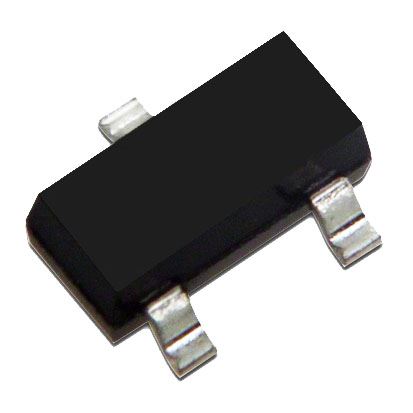

MMBT3906 40V PNP Small Signal Transistor SOT23

SKU 551618

MPN: MMBT3906

Availability:
174 in stock
Original price £0.18 - Original price £0.18
Original price
£0.18 Inc VAT
£0.18 - £0.18
Current price £0.18 Inc VAT

The MMBT3906 Transistor is a 40V PNP small signal transistor supplied in SOT23 packaging. Ideal for medium power amplification and switching. For further technical specifications please refer to the attached datasheet.

  • Epitaxial Planar Die Construction
  • PNP Small signl transistor
  • Totally Lead Free and Fully RoHS Compliant
  • Ideal for medium power amplification and switching
  • 40V 200mA SOT23
  • Specification
    Back order lead time 5 Days
    Collector base voltage 40V
    Collector current 200mA
    Collector emitter saturation voltage 400mV
    Collector emitter voltage 40V
    Dc current gain 100
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Surface Mount
    Package SOT23
    Power dissipation 300mW
    Transistion frequency 250MHz
    Type PNP
