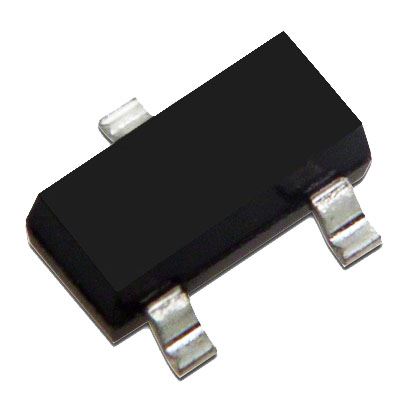

MMBT3904 40V NPN Small Signal Transistor SOT23

SKU 551617

MPN: MMBT3904

Availability:
Only 2 left!
Original price £0.16 - Original price £0.16
Original price
£0.16 Inc VAT
£0.16 - £0.16
Current price £0.16 Inc VAT

The MMBT3904 Transistor is a 40V NPN small signal transistor supplied in SOT23 packaging. Ideal for medium power amplification and switching. For further technical specifications please refer to the attached datasheet.

  • Epitaxial Planar Die Construction
  • NPN Small signl transistor
  • Totally Lead Free and Fully RoHS Compliant
  • Ideal for medium power amplification and switching
  • 40V 200mA SOT23
  • Specification
    Back order lead time 5 Days
    Collector base voltage 60V
    Collector current 200mA
    Collector emitter saturation voltage 300mV
    Collector emitter voltage 40V
    Dc current gain 100
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Surface Mount
    Package SOT23
    Power dissipation 300mW
    Transistion frequency 300MHz
    Type NPN
