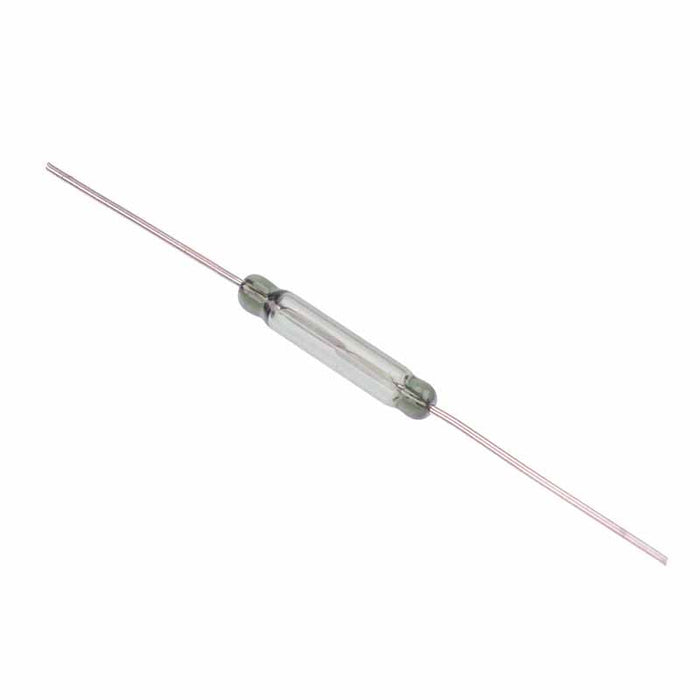

Miniature SPST-NO Reed Switch 50mA 24VDC

SKU 482569

MPN: 482569

Availability:
158 in stock
Original price £0.69 - Original price £0.69
Original price
£0.69 Inc VAT
£0.69 - £0.69
Current price £0.69 Inc VAT
Miniature reed switch featuring NO contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

  • Contacts: SPNO
  • Dimensions: 2.5 x 16mm (diameter x length)
  • Maximum switching voltage: 24VDC
  • Maximum switching current: 50mA
  • Pull-In value: 10-25AT
  • Specification
    Back order lead time 120 Days
    Bounce time 0.4ms
    Carry current 0.1A
    Contact configuration SPST-NO
    Diameter 2.5mm
    Drop out sensitivity 5AT Min
    Length 16mm
    Material Rhodium
    Maximum switching current 0.05A
    Maximum switching voltage 24VDC
    Operating temperature -10°C to +40°C
    Pull in sensitivity 10-25AT
    Release time 1ms
