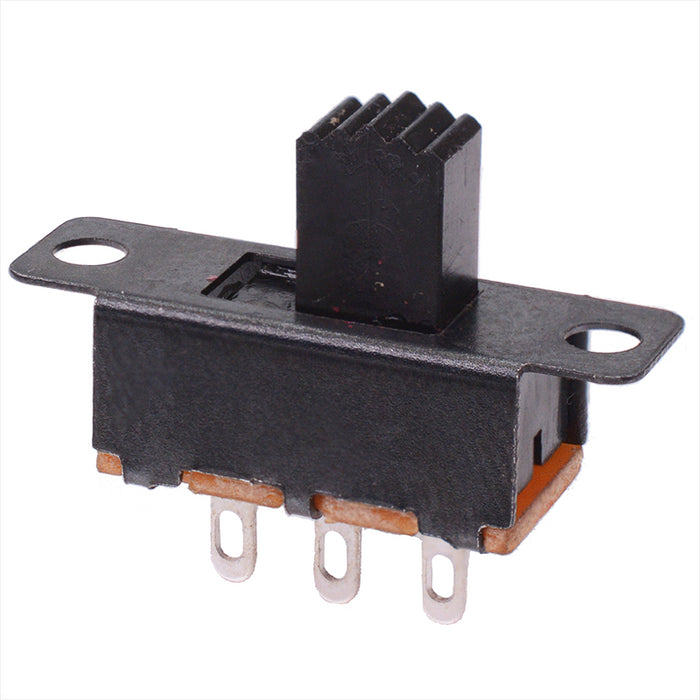

Miniature On-On Slide Switch 3-Pin SPDT

SKU 124002

MPN: 124002

Availability:
803 in stock
Original price £0.18 - Original price £0.18
Original price
£0.18 Inc VAT
£0.18 - £0.18
Current price £0.18 Inc VAT
Miniature slide switch with SPDT contacts and solder tag terminals suitable for a wide range of applications.

  • SPDT contacts
  • On-On action
  • Screw holes 19mm apart
  • 7mm actuator height
  • Dimensions: 24 x 19 x 7.5mm (Length x Height x Width)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 0.5A 50VDC
    Current rating 0.5A
    Electrical life 10,000 Cycles
    Moq 5
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Switch operation On-On
    Terminal type Solder
    Voltage rating 50VDC
