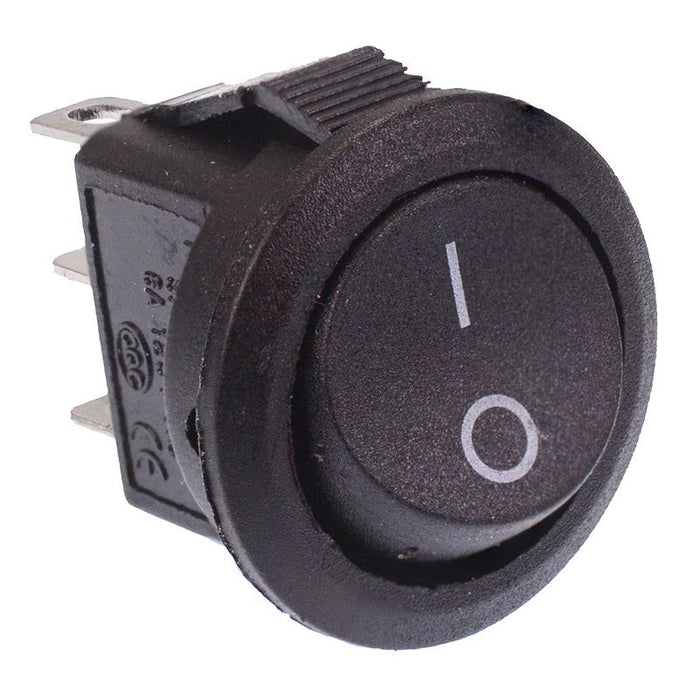

Miniature On-On Round 15mm Rocker Switch SPDT

SKU 130040

MPN: 130040

Availability:
1961 in stock
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT
Low cost miniature circular rocker switch with SPDT contacts and on-on action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-on action
  • SPDT contacts
  • Solder terminals
  • Panel cut-out: 15mm
  • Dimensions: 22 x 16.5mm (Height x Diameter)
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC, 6A 125VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 15mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
