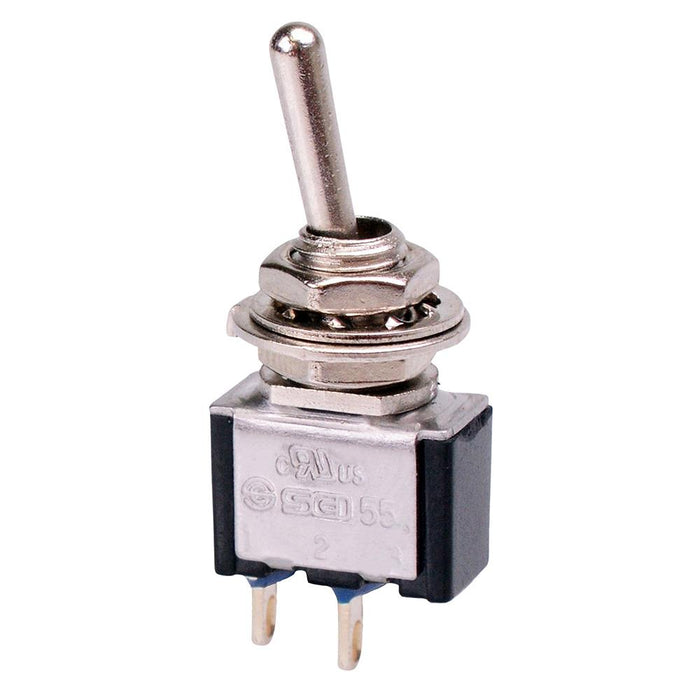

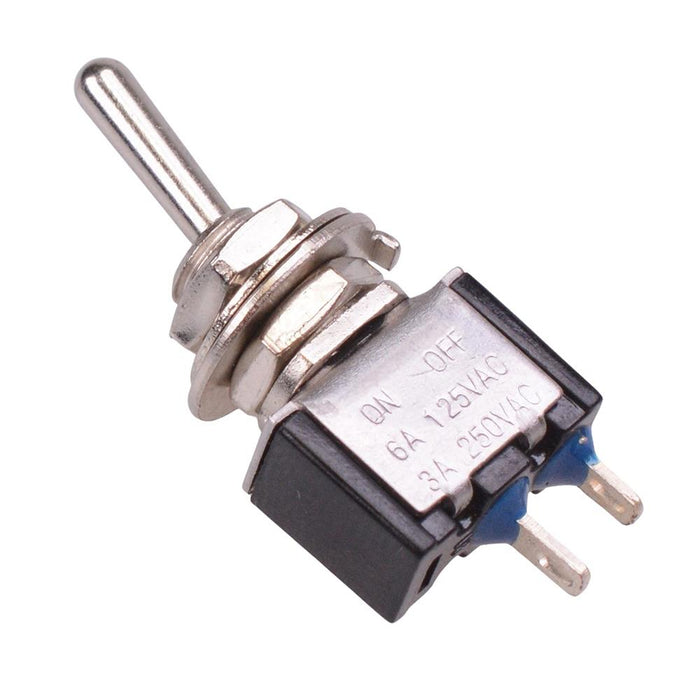

Miniature On-Off Toggle Switch SPST TA101A1

by SCI
SKU 112022

MPN: TA101A1

Availability:
1438 in stock
Original price £1.36 - Original price £1.36
Original price
£1.36 Inc VAT
£1.36 - £1.36
Current price £1.36 Inc VAT
Excellent quality miniature size toggle switches with SPST contacts suitable for a range of applications where a reliable switch is required.

  • On-Off action
  • SPST contacts
  • 6.2mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Epoxy sealed for dust and moisture resistance
  • SCI TA101A1
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPST
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 6mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
