Miniature Dry Contact Reed Switch 1A - GR560-20-25

by Comus
SKU 552489

MPN: GR560-20-25

Availability:
22 in stock
Original price £1.09 - Original price £1.09
Original price
£1.09 Inc VAT
£1.09 - £1.09
Current price £1.09 Inc VAT

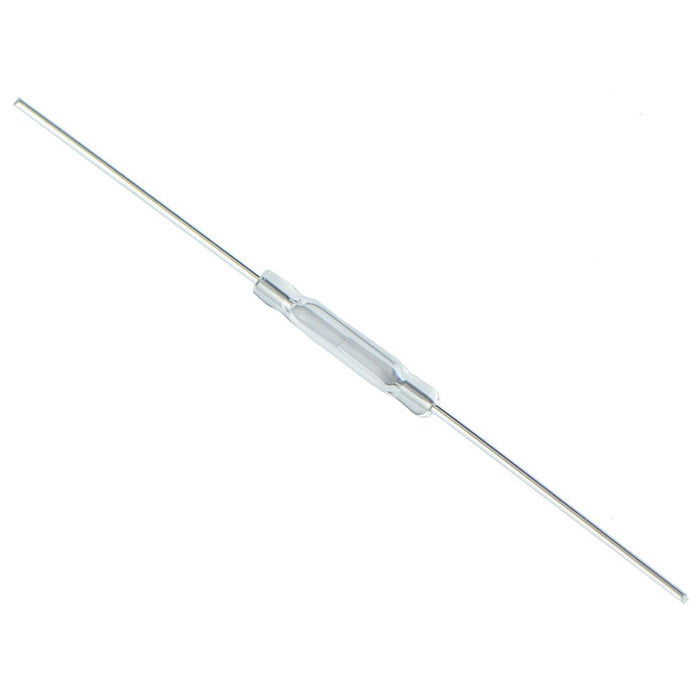

GR560-20-25 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 125VAC, 100VDC
  • Maximum switching current: 1A
  • Maximum switching power: 10VA
  • Specification
    Back order lead time 180 Days
    Carry current 1.5A
    Contact configuration SPST-NO
    Length 14.2mm
    Material Rhodium
    Maximum switching capacity 10VA
    Maximum switching current 1A
    Maximum switching voltage 100VDC, 125VAC
    Request a quote
