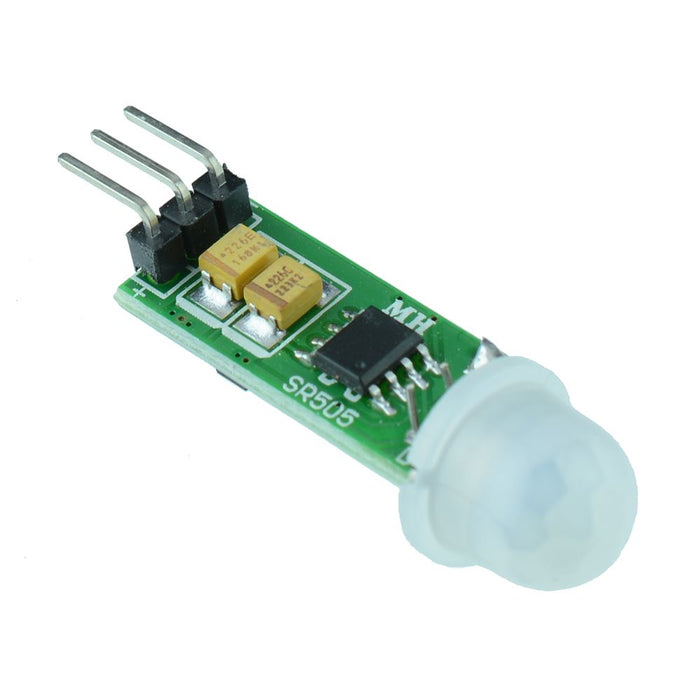

Mini Infrared PIR Motion Sensor Module HC-SR505

SKU 552416

MPN: 552416

Availability:
28 in stock
Original price £2.15 - Original price £2.15
Original price
£2.15 Inc VAT
£2.15 - £2.15
Current price £2.15 Inc VAT
Small bodied motion detection module featuring an infrared sensor providing high sensitivity and reliability. The module is commonly used with Arduino and Raspberry Pi microcontrollers, for applications including automatic control. Once movement is detected in the sensing range, the output is HIGH, until the delay time runs out.

  • Level output: high 3.3V / low 0V
  • Working voltage: 4.5V-20VDC
  • Repeatable trigger
  • Delay time: 8S default
  • Sensing distance: 3M
  • Sensing angle: 100°
  • Static current: <60uA
  • PCB dimensions: 10 x 23mm
  • Specification
    Back order lead time 30 Days
