Mini Black On-Off Rectangle Rocker Switch SPST

SKU 130002

MPN: 130002

Availability:
Out of stock
Sold out
Original price £0.41 - Original price £0.41
Original price
£0.41 Inc VAT
£0.41 - £0.41
Current price £0.41 Inc VAT

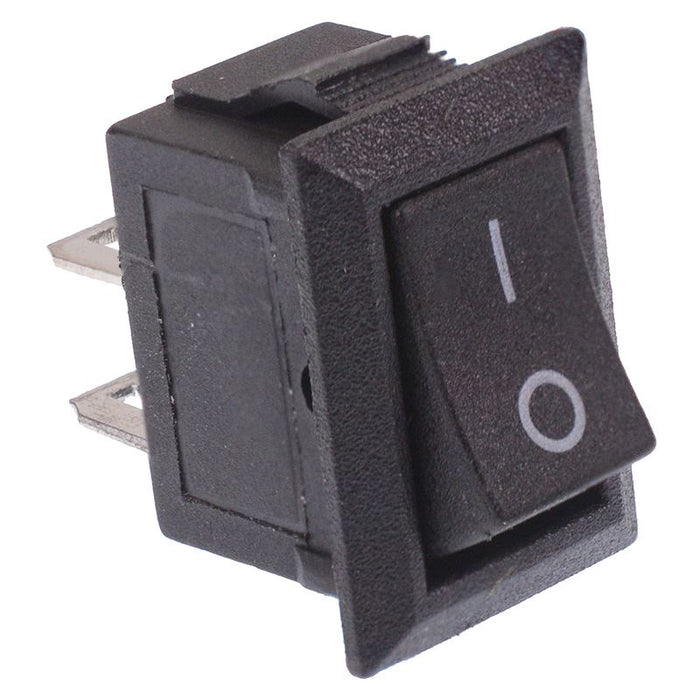

Miniature rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications where space is limited.

  • On-off action
  • SPST contacts
  • Solder terminals
  • Panel cut-out: 13.2 x 9mm
  • Dimensions: 20 x 15 x 10.5mm (Height x Length x Width)
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 13.2 x 9mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
