Microphone 7mm Height PCB
SKU 483463
MPN: 483463
Availability:
3587 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
-
£0.18
Current price
£0.18

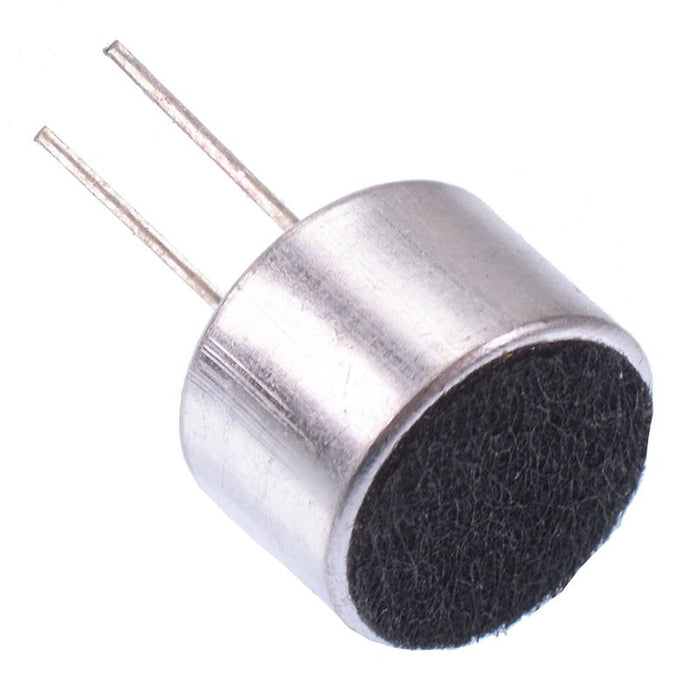

Electret condenser microphone featuring a 1V to 10V input voltage, suitable for PCB applications.
Omni-directional Sensitivity: 58dB Current drain: 0.5mA Max Dimensions: 6.7 x 9.7mm (Height x Diameter) Impedance: 2.2k Ohm Terminal pitch: 2.5mm S/N ratio: 40dB minimum
Specification
| Back Order Lead Time | 45 Days |
| Diameter | 9.7mm |
| Height | 6.7mm |
| Impedance | 2.2kΩ |
| Input Voltage | 1 to 10V |
| Maximum Supply Current | 0.5mA |
| MOQ | 5 |
| Operating Temperature | -20°C to +70°C |
| Pitch | 2.5mm |
| Sensitivity | 58dB |
| Signal to Noise Ratio | 40dB |
