Micro Metal Geared Motor 1/298

SKU 485760

MPN: 485760

Availability:
176 in stock
Original price £5.26 - Original price £5.26
Original price
£5.26 Inc VAT
£5.26 - £5.26
Current price £5.26 Inc VAT

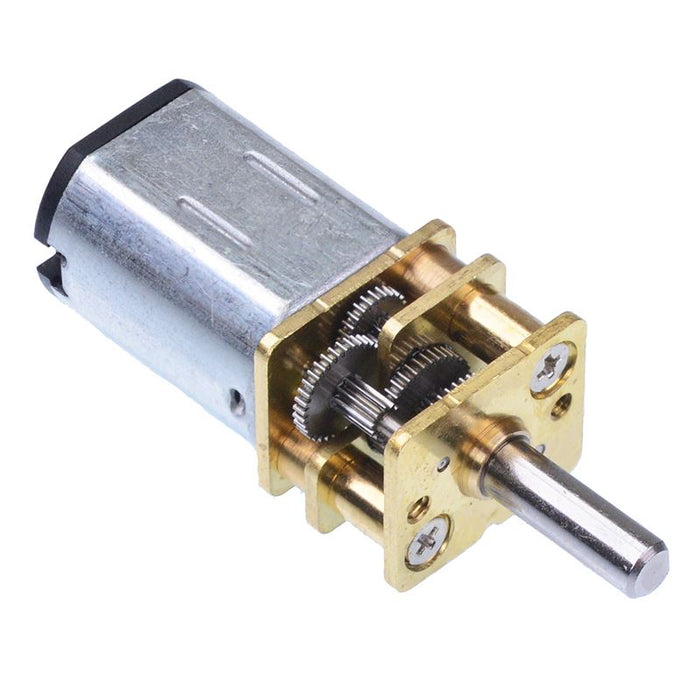

Miniature brushed motor with a 1:298 ratio metal gearbox and D-shaped 3mm diameter output shaft. The motor features a 59rpm rated speed and 6V nominal voltage, suitable for robotic applications.

  • Operating voltage: 3-6V
  • Nominal voltage: 6V
  • No load speed: 67rpm
  • No load current: 85mA
  • Torque: 4.2g.cm
  • Shaft diameter: 3mm
  • Dimensions: 34.1 x 12 x 10mm (length x width x height)
  • Specification
    Back order lead time 120 Days
    No load current 0.085A
    No load speed 67rpm
    Operating voltage 3-6V
    Rated load current 0.22A
    Rated load speed 59rpm
    Rated voltage 6V
    Shaft diameter 3.0mm
