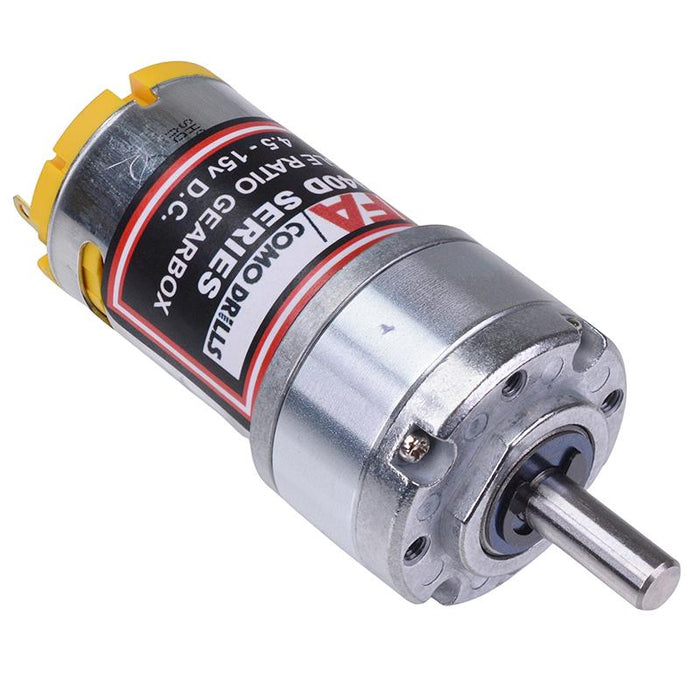

MFA 940D5161 Epicyclic 516:1 Gearbox and Motor 4.5-15V
by MFA Como
SKU 485473
MPN: 940D5161
Availability:
12 in stock
Original price
£41.04
-
Original price
£41.04
Original price
£41.04
Inc VAT
£41.04
-
£41.04
Current price
£41.04
Inc VAT
The 940D5161 is a 4.5-15V 5 pole DC motor with a 516:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motors are suitable for use with robots, models and heavy industrial applications.
516:1 gear ratio Operating range: 4.5-15V Nominal voltage: 12V No load current: 0.18A No load speed: 11,646RPM Geared speed: 23RPM 5.5mm output shaft Dimensions: 100.3 x 32mm (length x diameter) Weight 239g
Specification
| Back order lead time | 5 Days |
| Diameter | 32mm |
| Length | 81.1mm |
| No load current | 0.18A |
| No load speed | 23rpm |
| Operating voltage | 4.5-15V |
| Rated load current | 0.99A |
| Rated voltage | 12V |
| Shaft diameter | 5.5mm |
| Shaft length | 17.0mm |
