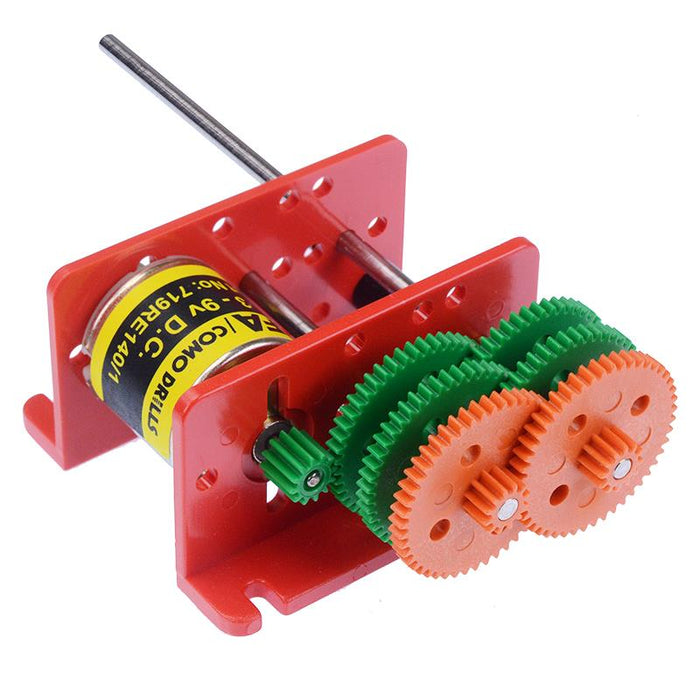

MFA 932D/A Motor and Gearbox Assembled

SKU 485449

MPN: 932D/A

Only 4 left!
Original price £9.57 - Original price £9.57
Original price
£9.57 Inc VAT
£9.57 - £9.57
Current price £9.57 Inc VAT
The 932D/A is a fully assembled motor and gearbox featuring various gear ratios and DC motor with an operating voltage between 6 to 9V. The motor can be powered using a battery or transformer making it suitable for various uses including powering models and robots.

  • Fully assembled gear ratios
  • Gear ratios: 4:1, 16:1, 64:1, 256:1, 1024:1, 4096:1
  • Motor input voltage: 6-9VDC
  • No load speed: 9200rpm
  • No load current: 0.066A
  • 3mm output shaft diameter
  • Specification
    Back order lead time 5 Days
    No load current 0.066A
    No load speed 9200rpm
    Operating voltage 6-9V
    Rated load current 0.219A
    Rated load speed 7071rpm
    Rated voltage 6V
    Shaft diameter 3.0mm
    Request a quote
