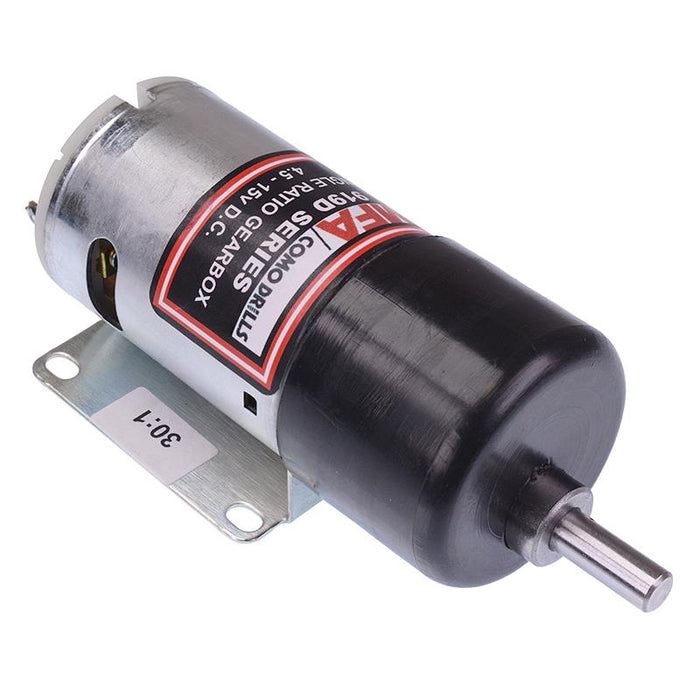

MFA 919D301 30:1 Gearbox and Motor 4.5-15V

SKU 485467

MPN: 919D301

Availability:
8 in stock
Original price £24.99 - Original price £24.99
Original price
£24.99
£24.99 - £24.99
Current price £24.99
The 919D301 is a 4.5-15V 3 pole DC motor with a 30:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motor is protected by a plastic cover to prevent the ingress of dust and dirt whilst also making it safer to touch. The motors are suitable for use with robots, models and heavy industrial applications.

  • 30:1 gear ratio
  • Operating range: 4.5-15V
  • Nominal voltage: 12V
  • No load current: 0.7A
  • No load speed: 14,500RPM
  • Geared speed: 483RPM
  • 6mm output shaft
  • Dimensions: 100.7 x 35.5mm (length x diameter)
  • Weight 249g
  • Specification
    Back Order Lead Time 5 Days
    Diameter 35.5mm
    Length 100.7mm
    No Load Current 0.7A
    No Load Speed 14,500rpm
    Operating Voltage 4.5-15V
    Rated Load Current 2.81A
    Rated Voltage 12V
    Shaft Diameter 6.0mm
    Shaft Length 15mm
