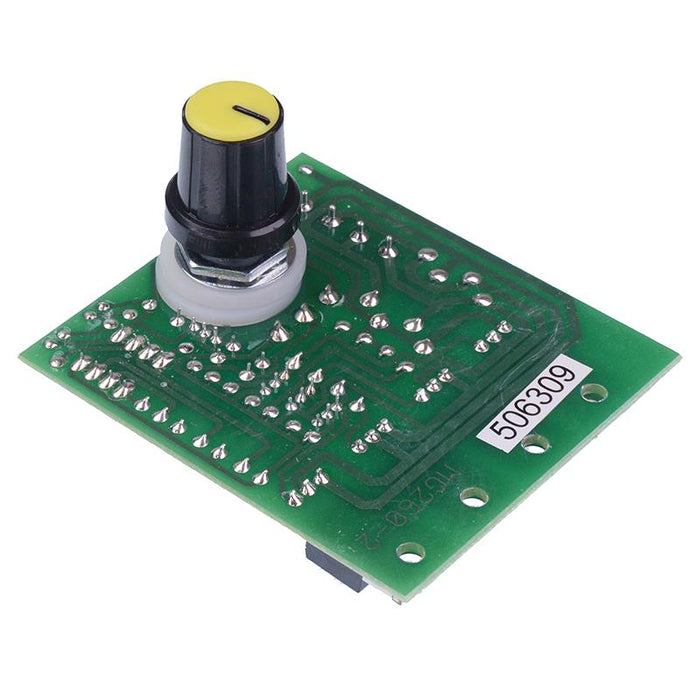

MFA 919D2PR Panel Mount Bi-Directional Variable Speed Regulator

The 919D2PR is a panel mount bi-directional variable speed regulator providing smooth and progressive speed control in forward and reverse for use with DC motors. The regulator is suitable for 6-15V and uses PWM circuitry which varies the output pulse width to vary the motor speed while maintaining a constant output voltage.

Forward and reverse

Input voltage: 6-15V

Output voltage: 0 to input voltage

Output current: 5A peak, 3A continuous

Linear output response

Full ‘H’ bridge output drive

Circuit provides approx 1/5th second breaking pause between directional changes

Edge to edge frequency 2KHz

Board size: 66 x 58mm
