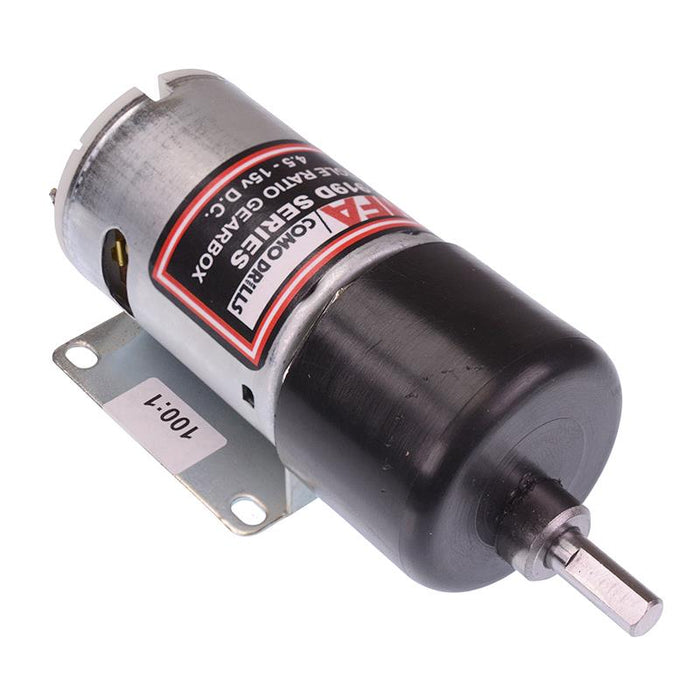

MFA 919D1001 100:1 Gearbox and Motor 4.5-15V

SKU 485468

MPN: 919D1001

7 in stock
Original price £25.01 - Original price £25.01
Original price
£25.01 Inc VAT
£25.01 - £25.01
Current price £25.01 Inc VAT
The 919D1001 is a 4.5-15V 3 pole DC motor with a 100:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motor is protected by a plastic cover to prevent the ingress of dust and dirt whilst also making it safer to touch. The motors are suitable for use with robots, models and heavy industrial applications.

  • 100:1 gear ratio
  • Operating range: 4.5-15V
  • Nominal voltage: 12V
  • No load current: 0.7A
  • No load speed: 14,500RPM
  • Geared speed: 143RPM
  • 6mm output shaft
  • Dimensions: 103.2 x 35.5mm (length x diameter)
  • Weight 255g
  • Specification
    Back order lead time 5 Days
    Diameter 35.5mm
    Length 100.7mm
    No load current 0.7A
    No load speed 143rpm
    Operating voltage 4.5-15V
    Rated load current 2.81A
    Rated voltage 12V
    Shaft diameter 6.0mm
    Shaft length 15mm
