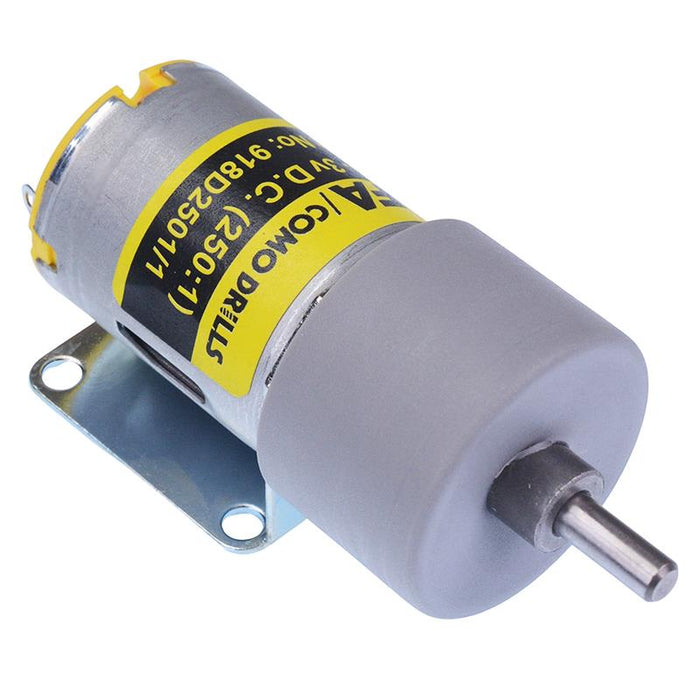

MFA 918D2501/1 250:1 Gearbox and Motor 1.5-3V

SKU 485465

MPN: 918D2501/1

Availability:
11 in stock
Original price £13.89 - Original price £13.89
Original price
£13.89
£13.89 - £13.89
Current price £13.89
The 918D2501/1 is a 1.5-3V 3 pole DC motor with a 250:1 single ratio gearbox. The gearbox is constructed from brass and steel and protected by a plastic cover to prevent the ingress of dust and dirt whilst also making it safer to touch. The motors are suitable for use with robots, models and light industrial applications.

  • 250:1 gear ratio
  • Operating range: 1.5-3V
  • Nominal voltage: 3V
  • No load current: 0.24A
  • No load speed: 8800RPM
  • Geared speed: 35RPM
  • 4mm output shaft
  • Dimensions: 67.5 x 24mm (length x diameter)
  • Weight 76g
  • Specification
    Back Order Lead Time 5 Days
    Diameter 24mm
    Length 67.5mm
    No Load Current 0.24A
    No Load Speed 35rpm
    Operating Voltage 1.5-3V
    Rated Load Current 1.06A
    Rated Voltage 3V
    Shaft Diameter 4.0mm
    Shaft Length 10.0mm
