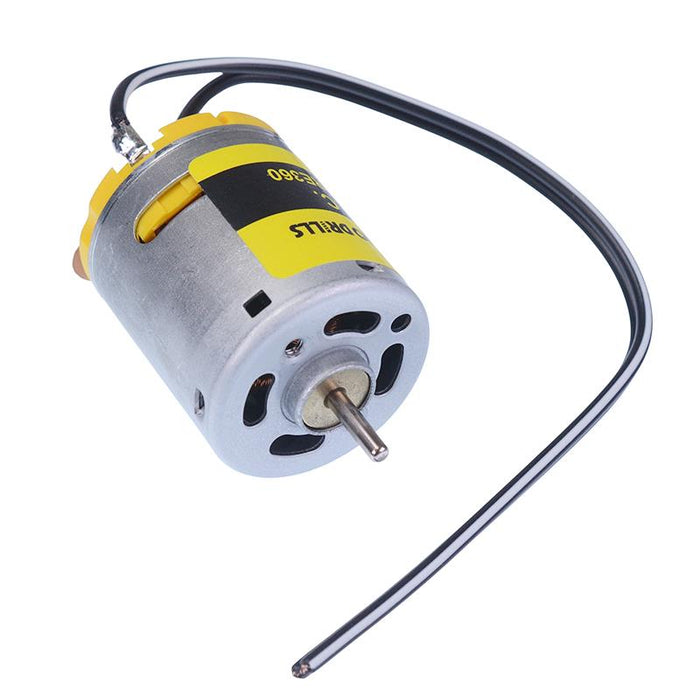

MFA 719RE-360 6-15V 3 Pole DC Motor 10420RPM

SKU 485450

MPN: 719RE-360

Availability:
8 in stock
Original price £5.09 - Original price £5.09
Original price
£5.09 Inc VAT
£5.09 - £5.09
Current price £5.09 Inc VAT
The 719RE-360 is a 3 pole DC motor with a nominal 12V voltage and 10420RPM no load speed. The motor features robust gearing and quality housing making it suitable for heavy industrial and model applications.

  • 3 poles
  • Operating range: 6-15V
  • Nominal voltage: 12V
  • No load speed: 10420RPM
  • No load current: 0.143A
  • Body dimensions: 32.5 x 27.6 (length x diameter)
  • Output shaft diameter: 2.3mm
  • Weight: 51g
  • Specification
    Back order lead time 5 Days
    Diameter 27.6mm
    Length 32.5mm
    No load current 0.143A
    No load speed 10,420rpm
    Operating voltage 6-15V
    Rated load current 0.143A
    Rated load speed 8768rpm
    Rated voltage 12V
    Shaft diameter 2.3mm
    Shaft length 8.2mm
