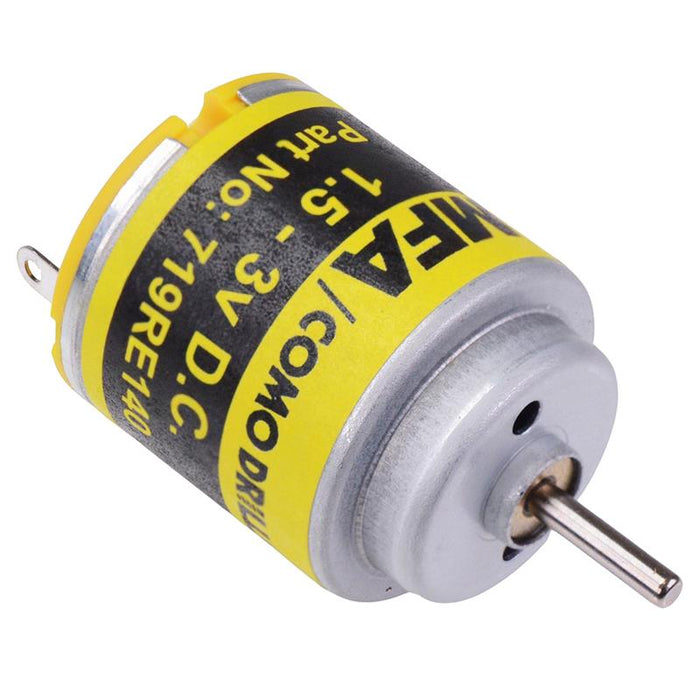

MFA 719RE-140 1.5-3V 3 Pole DC Motor 15300RPM

SKU 485457

MPN: 719RE-140

Availability:
32 in stock
Original price £1.79 - Original price £1.79
Original price
£1.79 Inc VAT
£1.79 - £1.79
Current price £1.79 Inc VAT
The 719RE-140 is a 3 pole DC motor with a nominal 3V voltage and 15300RPM no load speed. The motor features robust gearing and quality housing making it suitable for light industrial and model applications.

  • 3 poles
  • Operating range: 1.5-3V
  • Nominal voltage: 3V
  • No load speed: 15300RPM
  • No load current: 0.26A
  • Body dimensions: 21 x 21 (length x diameter)
  • Output shaft diameter: 2.0mm
  • Weight: 20g
  • Specification
    Back order lead time 5 Days
    Diameter 21mm
    Length 21.0mm
    No load current 0.26A
    No load speed 15,300rpm
    Operating voltage 1.5-3V
    Rated load current 1.04A
    Rated load speed 12,200rpm
    Rated voltage 3V
    Shaft diameter 2.0mm
    Shaft length 8.3mm
