Mega Fuse Holder 10-20mm²

by MTA
SKU 481532

MPN: FH567

Availability:
21 in stock
Original price £10.13 - Original price £10.13
Original price
£10.13 Inc VAT
£10.13 - £10.13
Current price £10.13 Inc VAT

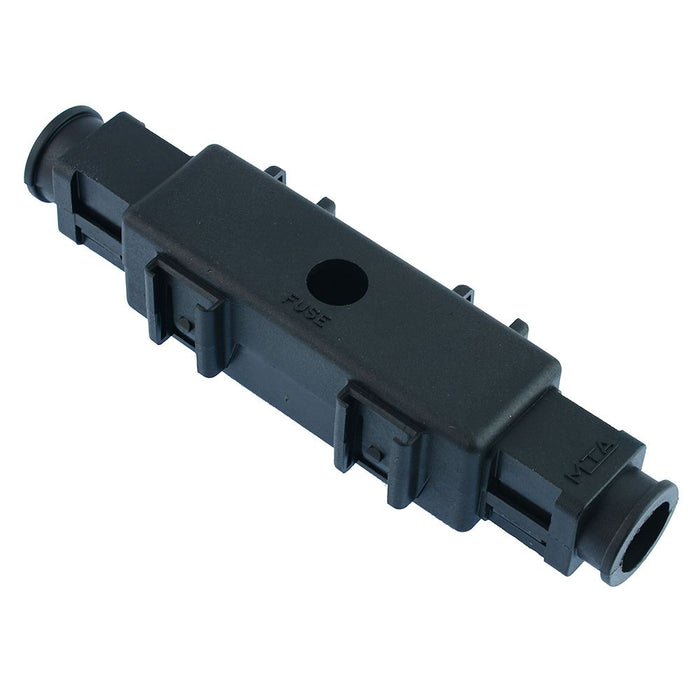

Individual fuse holder featuring a low profile design, suitable for use with mega fuses up to 500A. The holder comes supplied with 2 x M8 studs and non-insulated terminals allowing crimping to 10-20mm2 cable.

  • Colour: black
  • Voltage rating: 32V DC
  • Current rating: 500A
  • Fixing hole diameter: 9.9mm
  • Cable size: 10-20mm2
  • Complete with 2 x M8 studs, locking nuts and crimp terminals
  • Overall dimensions: 123 x 33.3 x 24.7mm (L x W x H)
  • Specification
    Back order lead time 5 Days
    Body material PA66
    Compatible wire size 10mm² to 20mm²
    Current rating 500A
    Fuse size Mega
    Mounting style In-Line
    Number of fuses 1
    Operating temperature -40°C to +130°C
    Protection level IP20
    Voltage rating 32VDC
    Wire size 10mm² to 20mm²
