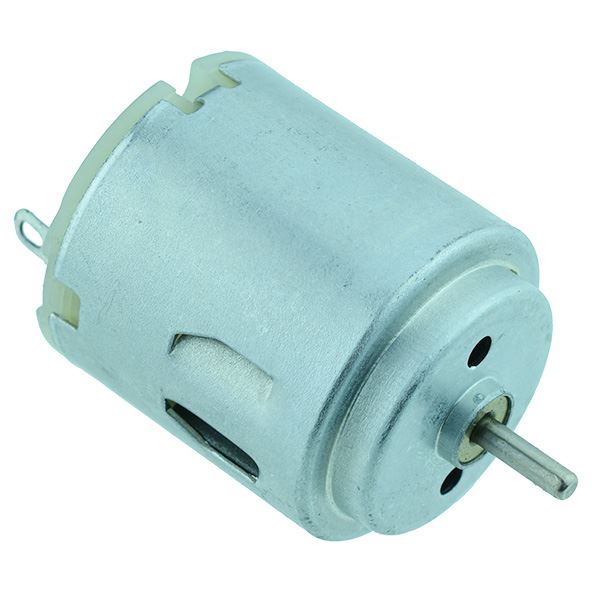

Medium Torque Round DC Motor 1.5V to 4.5V 6600rpm

SKU 480853

MPN: 480853

Availability:
1360 in stock
Original price £1.12 - Original price £1.12
Original price
£1.12 Inc VAT
£1.12 - £1.12
Current price £1.12 Inc VAT
Medium torque miniature DC motor with a 1.5V to 4.5V operating range and 6600rpm speed, suitable for educational and model applications.

  • Nominal voltage: 3.0V
  • Operating voltage: 1.5-4.5V
  • No load speed: 6600rpm
  • No load current: 0.13A
  • Speed at maximum efficiency: 5100rpm
  • Current at maximum efficiency: 0.4A
  • Output: 0.42W
  • Dimensions: 26.9 x 24mm (Length x Diameter)
  • Shaft size: 8.6 x 2mm (Length x Diameter)
  • Specification
    Back order lead time 120 Days
    Diameter 24mm
    Length 27mm
    No load current 0.13A
    No load speed 6600rpm
    Operating voltage 1.5-4.5V
    Rated load current 0.4A
    Rated load speed 5100rpm
    Rated voltage 3V
    Shaft diameter 2.0mm
    Shaft length 8.6mm
