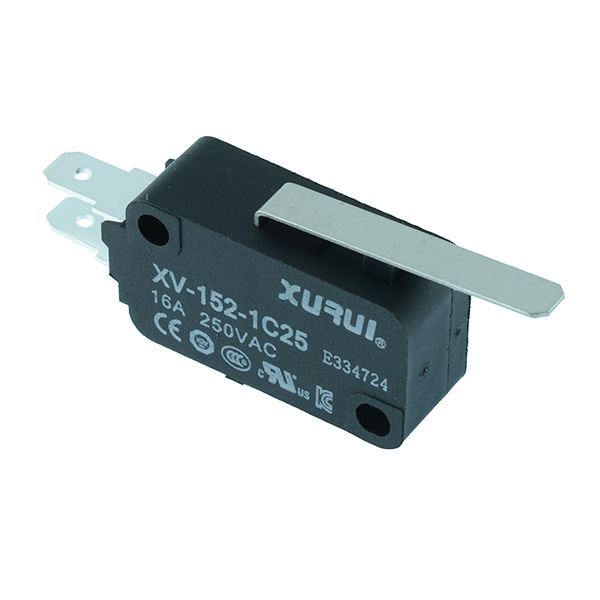

Medium Lever V3 Microswitch SPDT 16A 250VAC

SKU 480398

MPN: 480398

Availability:
Out of stock
Sold out
Original price £1.09 - Original price £1.09
Original price
£1.09
£1.09 - £1.09
Current price £1.09
Standard size V3 microswitch featuring a lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.

  • Medium lever actuator
  • Rating: 15A 250VAC
  • NO / NC contacts
  • 4.8mm quick connect terminals
  • 1,000,000 operation life
  • 125g operating force
  • 14g release force
  • Specification
    Back Order Lead Time 120 Days
    Contact Configuration SPDT
    Contact Rating 16A 250VAC
    Current Rating 16A
    Electrical Life 100,000 Cycles
    Number of Positions 2
    Operating Force 125g
    Operating Temperature -25°C to +80°C
    Protection Level IP40
    Release Force 14g
    Terminal Type Quick Connect
    Voltage Rating 250VAC
