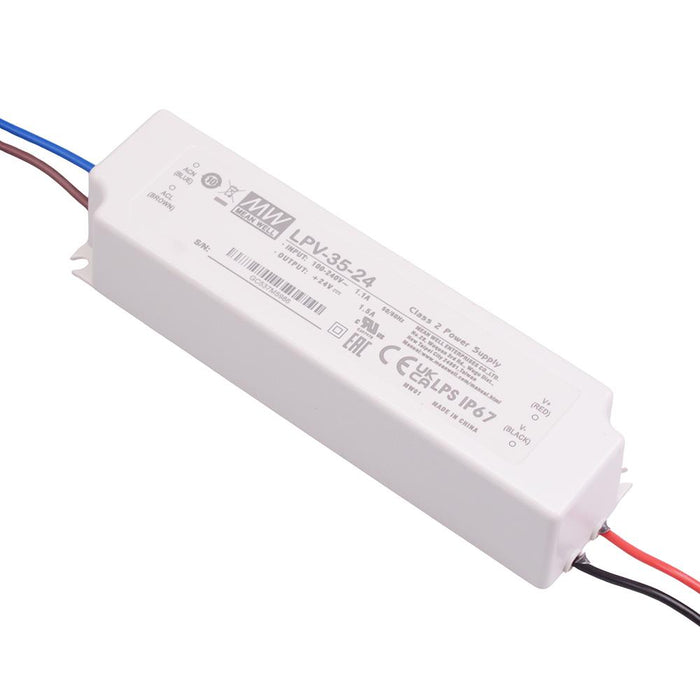

LPV-35-24 35W 24V LED Driver Power Supply IP67 Mean Well
by Mean Well
SKU 492926
MPN: LPV-35-24
Availability:
7 in stock
Original price
£11.85
-
Original price
£11.85
Original price
£11.85
£11.85
£11.85
-
£11.85
Current price
£11.85
The LPV-35-24 is a single output switching LED power supply by Mean Well, fully encapsulated to IP67. The power supply features universal AC input providing excellent reliability, suitable for a range of applications including industrial and LED lighting.
Output voltage: 24VDC Output current: 1.5A Rated power: 36W Input voltage range: 90-264VAC / 127-370VDC Constant voltage design Withstand 300VAC surge input for 5 seconds Protections: short circuit / over load / over voltage Cooling by free air convection Fully incapsulated to IP67 Fully isolated plastic case Class II power unit, no FG 100% full load burn-in test 2 year warranty Dimensions: 148 x 40 x 30mm (length x width x height)
Specification
| Back Order Lead Time | 7 |
| Input Frequency | 47-63Hz |
| Input Voltage | 90-264VAC, 127-370VDC |
| MOQ | 1 |
| Output Current | 1.5A |
| Output Voltage | 24VDC |
| Power Rating | 36W |
| Protection Level | IP67 |
