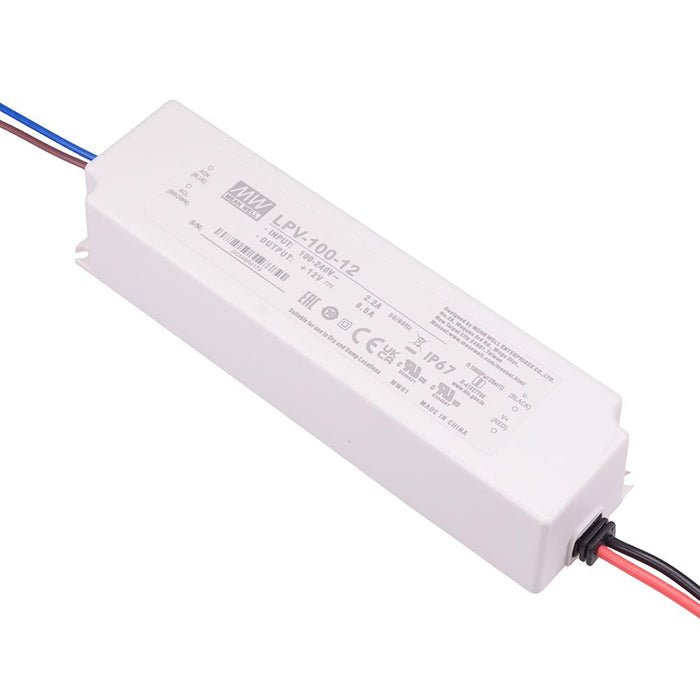

LPV-100-12 100W 12V LED Driver Power Supply IP67 Mean Well

The LPV-100-12 is a single output switching LED power supply by Mean Well, fully encapsulated to IP67. The power supply features universal AC input providing excellent reliability, suitable for a range of applications including industrial and LED lighting.

Output voltage: 12VDC

Output current: 8.5A

Rated power: 102W

Input voltage range: 90-264VAC / 127-370VDC

Constant voltage design

Withstand 300VAC surge input for 5 seconds

Protections: short circuit / over load / over voltage

Cooling by free air convection

Fully incapsulated to IP67

Fully isolated plastic case

Class II power unit, no FG

100% full load burn-in test

2 year warranty

Dimensions: 190 x 52 x 37mm (length x width x height)
