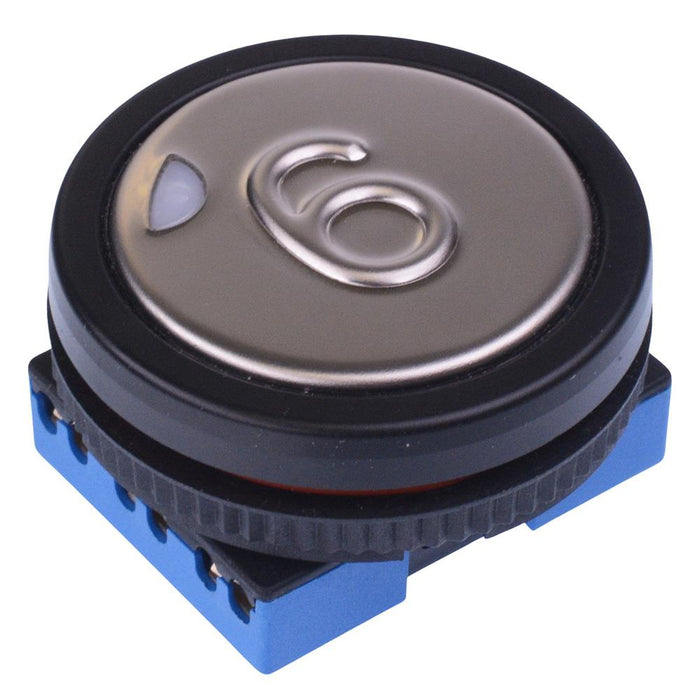

LPI5112R1K21706 APEM '6' Red 12V illuminated Large Actuator Push Button Switch IP53
by APEM
SKU 487849
MPN: LPI5112R1K21706
Availability:
10 in stock
Original price
£17.77
-
Original price
£17.77
Original price
£17.77
Inc VAT
£17.77
-
£17.77
Current price
£17.77
Inc VAT
The LPI5112R1K21706 is a tactile push button switch with a large actuator manufactured by APEM, featuring LED dot illumination and low behind panel depth. The switch features the largest actuator in the whole of the APEM range and complies with the EN81-70 standard making it suitable for disabled persons to access lifts and buildings more easily.
Red dot LED illumination 12V illumination voltage 35mm diameter ergonomic actuator Low behind panel depth (21mm max) Tactile feedback Very long life Rating: 5A 12VDC Momentary NO/NC contacts Protection level: IP53 Panel thickness: 1-4mm Wire size: 16-28AWG Operating force: 2.5-5N Dimensions: 44 x 26.3mm (diameter x depth)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | NO/NC |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 12VDC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to 65°C |
| Panel cut out | 38.1mm |
| Panel thickness | 1-4mm |
| Product series | LPI |
| Protection level | IP53 |
| Terminal type | Screw |
| Voltage rating | 12VDC |
