LPI3124R1X41714 APEM Open Door Red 24V illuminated Large Actuator Push Button Switch IP53
by APEM
SKU 490084
MPN: LPI3124R1X41714
Availability:
30 in stock
Original price
£14.60
-
Original price
£14.60
Original price
£14.60
Inc VAT
£14.60
-
£14.60
Current price
£14.60
Inc VAT

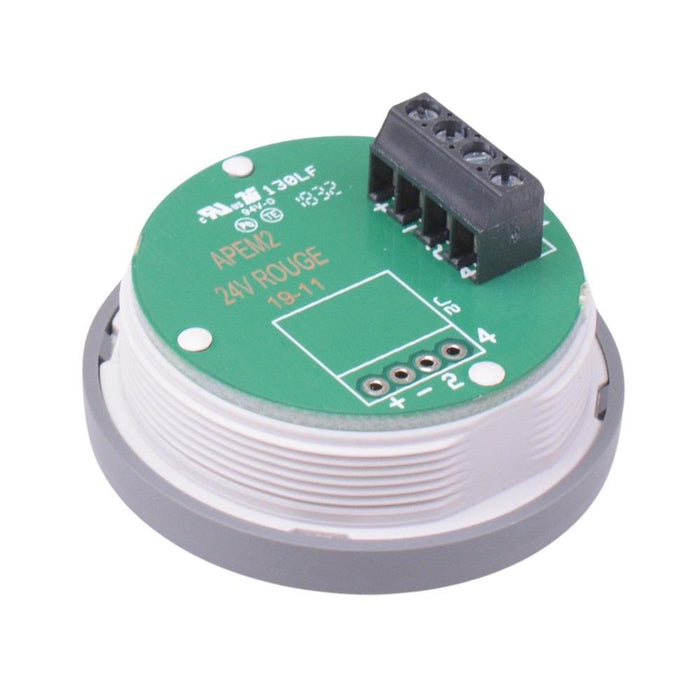

The LPI3124R1X41714 is a tactile push button switch with a large actuator manufactured by APEM, featuring LED dot illumination and low behind panel depth. The switch features the largest actuator in the whole of the APEM range and complies with the EN81-70 standard making it suitable for disabled persons to access lifts and buildings more easily.
Red dot LED illumination Door open symbol 24V illumination voltage 35mm diameter ergonomic actuator Low behind panel depth (21mm max) Tactile feedback Very long life Rating: 50mA 24VDC Momentary NO contacts Protection level: IP40 Panel thickness: 1-4mm Wire size: 16-28AWG Operating force: 2.5-5N Dimensions: 44 x 26.3mm (diameter x depth)
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 50mA 24VDC |
| Current rating | 0.05A |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 24VDC |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 2.5 to 5N |
| Operating temperature | -20°C to 65°C |
| Panel cut out | 38.1mm |
| Panel thickness | 1-4mm |
| Product series | LPI |
| Protection level | IP40 |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 24VDC |
