Low Inertia 6V Motor

SKU 480855

MPN: 480855

Availability:
2122 in stock
Original price £2.31 - Original price £2.31
Original price
£2.31 Inc VAT
£2.31 - £2.31
Current price £2.31 Inc VAT

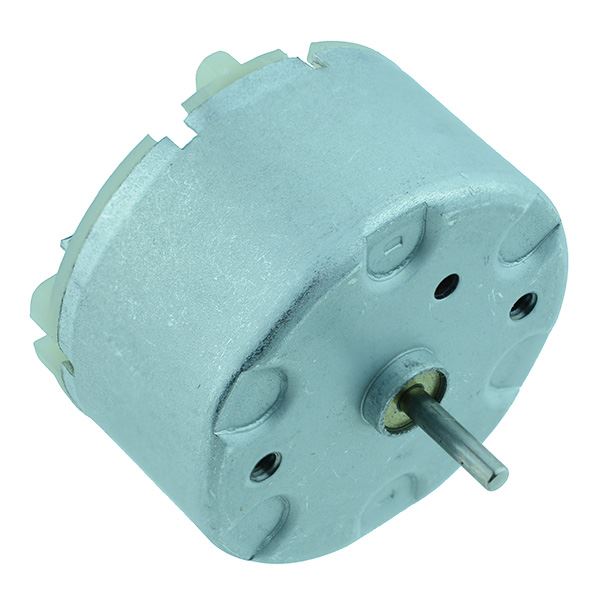

Precision low inertia DC motor featuring a 1.5V to 9V operating range, clockwise rotation, suitable for use with solar modules and cells.

  • Nominal voltage: 6.0V
  • Operating voltage: 1.5-9.0V
  • No load speed: 2800rpm
  • No load current: 0.02A
  • Speed at maximum efficiency: 2300rpm
  • Current at maximum efficiency: 0.075A
  • Output: 0.24W
  • Dimensions: 32 x 19.5mm (Length x Diameter)
  • Shaft size: 8.4 x 2mm (Length x Diameter)
  • Specification
    Back order lead time 120 Days
    Diameter 32mm
    Length 19.5mm
    No load current 0.02A
    No load speed 2800rpm
    Operating voltage 1.5-9V
    Rated load current 0.075A
    Rated load speed 2300rpm
    Rated voltage 6V
    Shaft diameter 2.0mm
    Shaft length 8.4mm
