Long Paddle On-Off Black Toggle Switch SPST 20A
SKU 489281
MPN: ASW-13-101L
Availability:
288 in stock
Original price
£1.05
-
Original price
£1.05
Original price
£1.05
Inc VAT
£1.05
-
£1.05
Current price
£1.05
Inc VAT

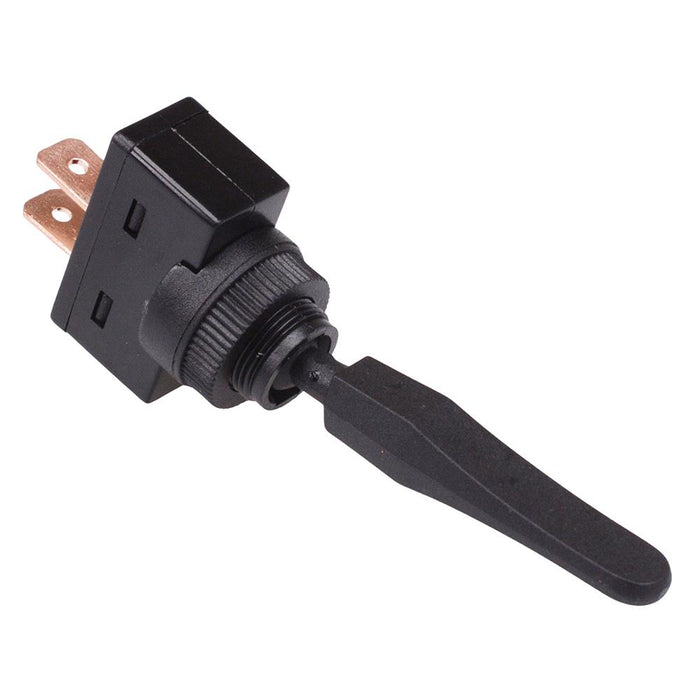

On-off toggle switch featuring a long black paddle and 20A current rating. The switch features 6.35mm quick connect terminals and require a 12mm panel cut-out diameter. The switch is suitable for a wide range of applications including automotive.

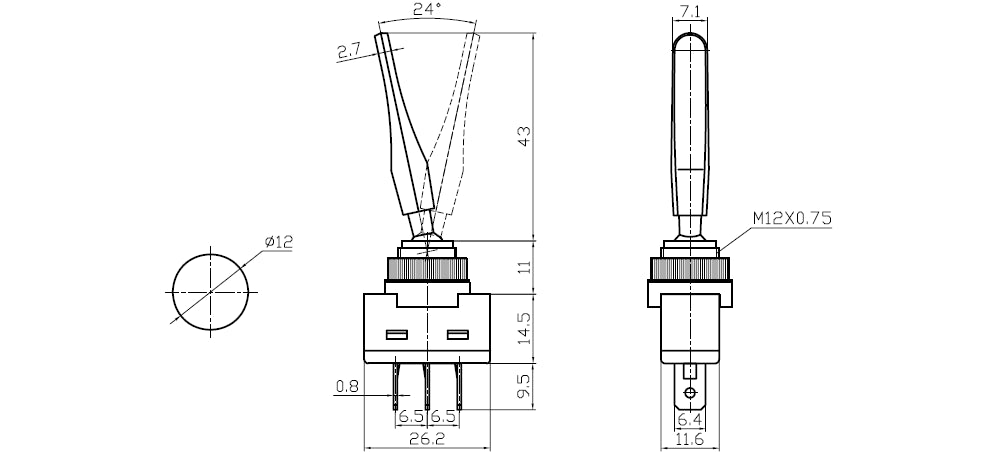

On-Off action SPST contacts Panel cut-out: 12mm M12x0.75mm thread 6.35mm quick connect terminals 43mm length paddle
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
