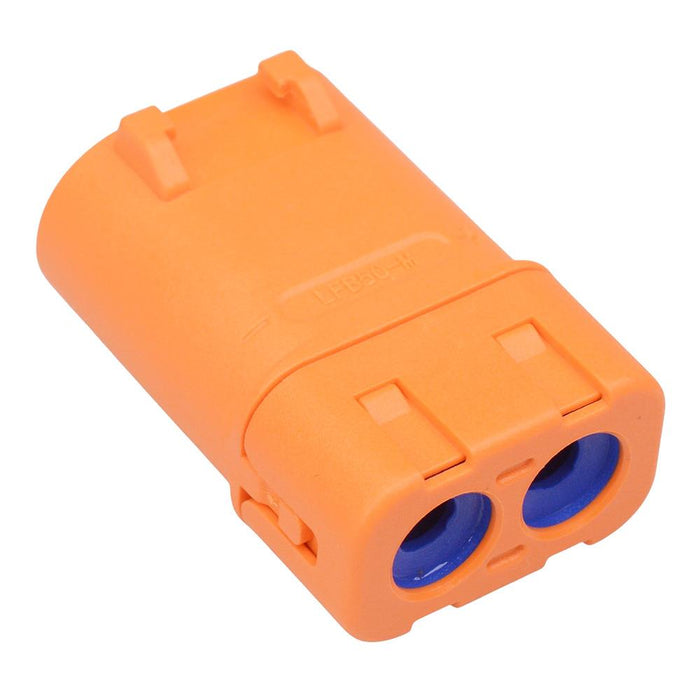

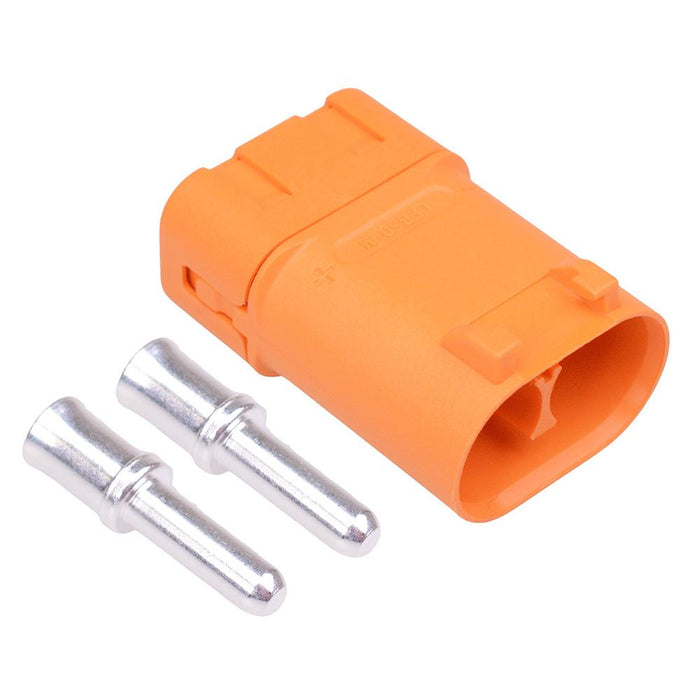

LFB50-M Male 2-Pin Silver Plated Connector 65A AMASS

The LFB50-M is a fourth generation waterproof female connector by AMASS featuring a high temperature resistant PBT housing and silver plated contacts providing excellent conductivity. The connector is rated to IP67 providing protection against water ingress and providing safer electrical connection with minimal risk of short circuit. The connector is designed for soldering and suitable for a wide range of power and battery connectivity applications in harsh environments.

2 pins

Contact material: silver plated copper

Housing material: PBT

Current rating: 65A

Voltage rating: 600VDC

Wire size: 10-8AWG

Dimensions: 39.0 x 26.0 x 18.45mm (length x width x height)
