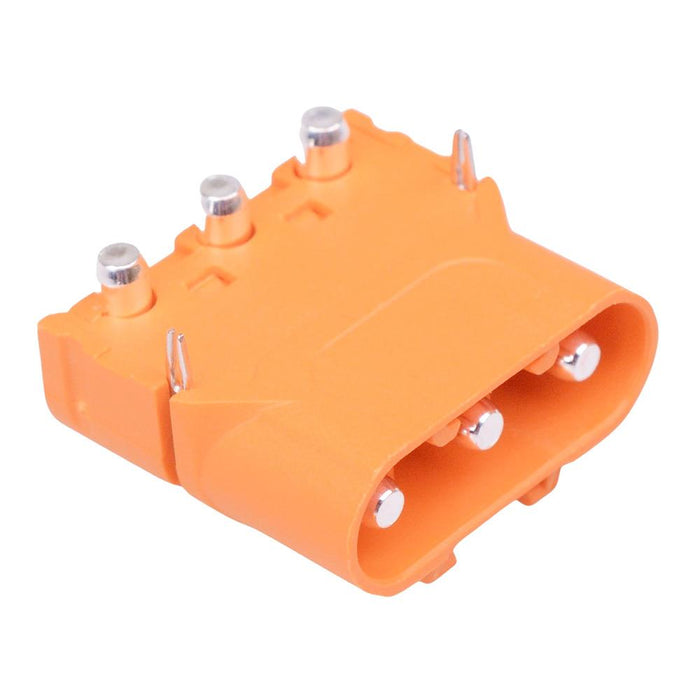

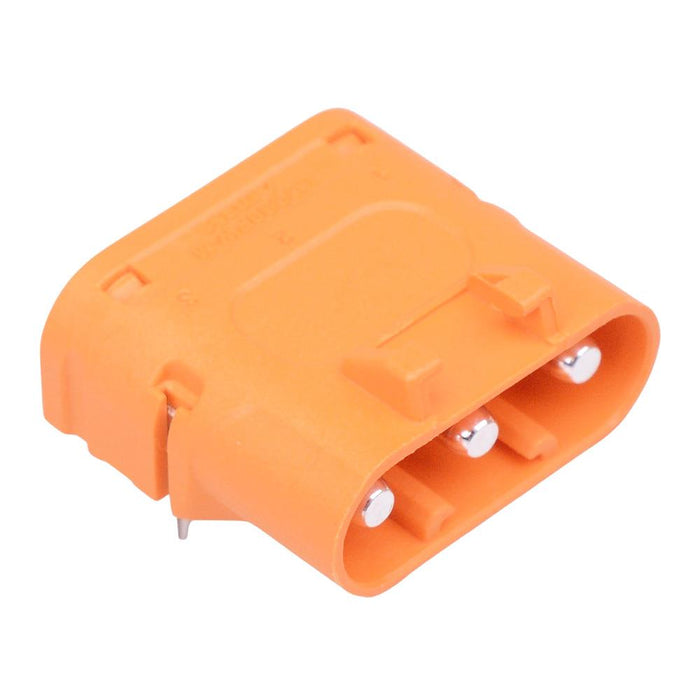

LCC30PW-M Male 3-Pin Silver Plated PCB Connector 20A AMASS
by AMASS
SKU 490439
MPN: LCC30PW-M.S.O
Availability:
200 in stock
Original price
£1.85
-
Original price
£1.85
Original price
£1.85
£1.85
£1.85
-
£1.85
Current price
£1.85
The LCC30PW-M is a male 3 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for PCB mounting and suitable for a wide range of power and battery connectivity applications.
3 pins Contact material: silver plated copper Housing material: nylon Current rating: 20A Voltage rating: 600VDC Wire size: 14-12AWG Dimensions: 22.3 x 24.7 x 14.95mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 20A |
| Gender | Male |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 3 |
| Operating Temperature | -40°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 600VDC |
| Wire Gauge | 14-12AWG |
