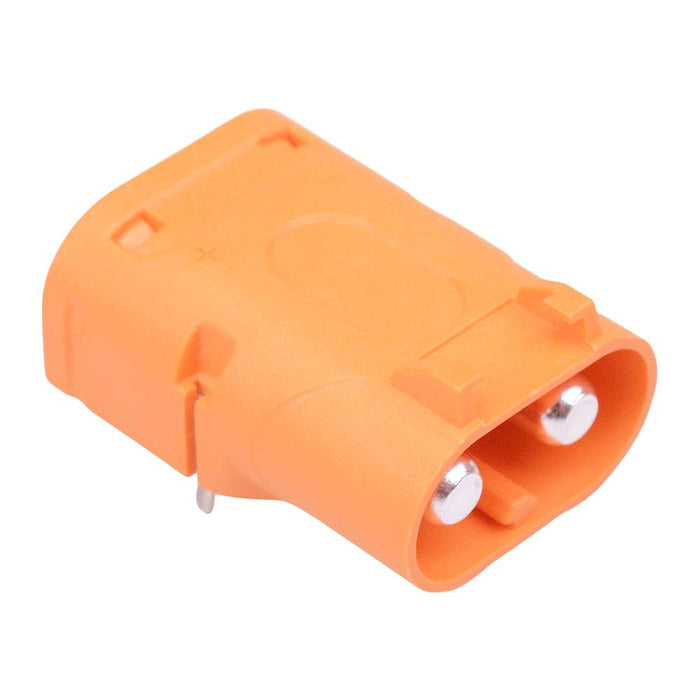

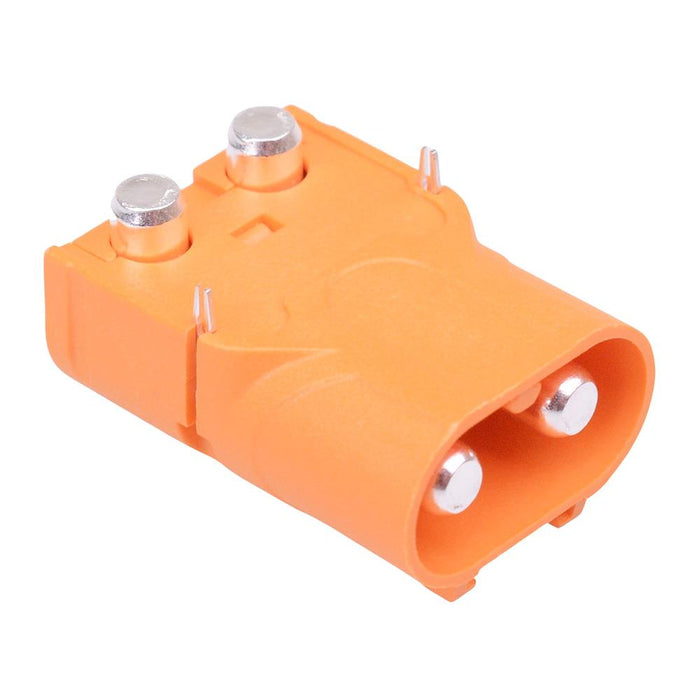

LCB50PW-M Male 2-Pin Silver Plated PCB Connector 40A AMASS
by AMASS
SKU 490431
MPN: LCB50PW-M.S.O
Availability:
100 in stock
Original price
£2.86
-
Original price
£2.86
Original price
£2.86
£2.86
£2.86
-
£2.86
Current price
£2.86
The LCB50PW-M is a male 2 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for PCB mounting and suitable for a wide range of power and battery connectivity applications.
2 pins Contact material: silver plated copper Housing material: nylon Current rating: 40A Voltage rating: 600VDC Wire size: 10-8AWG Dimensions: 31.7 x 23.3 x 19.4mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 40A |
| Gender | Male |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2 |
| Operating Temperature | -40°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 600VDC |
| Wire Gauge | 10-8AWG |
