LCB40-F Female 2-Pin Silver Plated Connector 30A AMASS
by AMASS
SKU 490424
MPN: LCB40-F
Availability:
489 in stock
Original price
£1.52
-
Original price
£1.52
Original price
£1.52
£1.52
£1.52
-
£1.52
Current price
£1.52

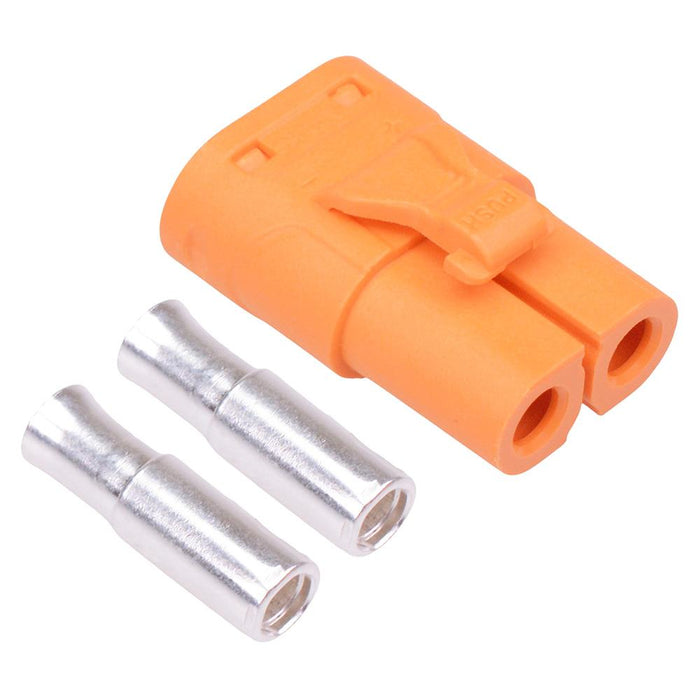

The LCB40-F is a female 2 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for soldering and suitable for a wide range of power and battery connectivity applications.
2 pins Contact material: silver plated copper Housing material: nylon Current rating: 30A Voltage rating: 600VDC Wire size: 12-10AWG Dimensions: 28.5 x 19.65 x 14.4mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 30A |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2 |
| Operating Temperature | -40°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 600VDC |
| Wire Gauge | 12-10AWG |
