LCA60-F Red Female 1-Pin Silver Plated Connector 55A AMASS
by AMASS
SKU 490450
MPN: LCA60-F Red
Availability:
200 in stock
Original price
£2.36
-
Original price
£2.36
Original price
£2.36
£2.36
£2.36
-
£2.36
Current price
£2.36

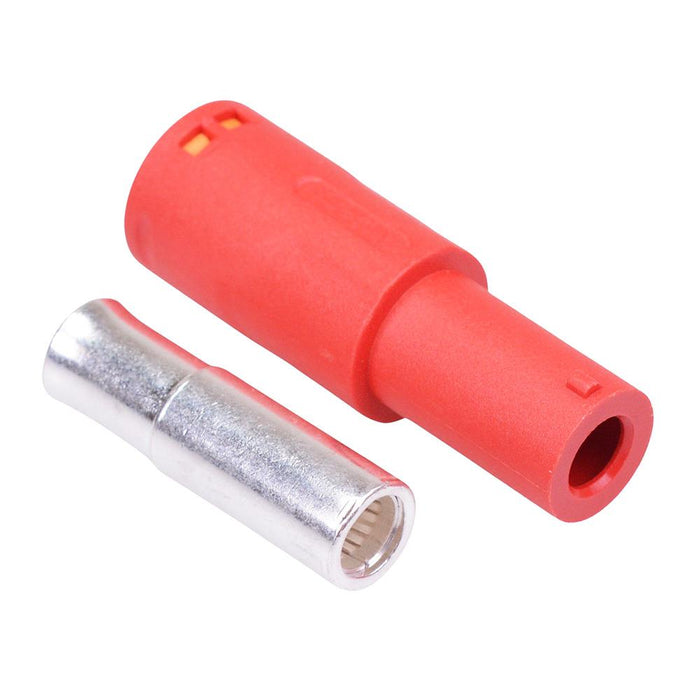

The LCA60-F is a red female 1 pin power connector featuring a high temperature resistant nylon housing and silver plated contacts providing excellent conductivity. The connector is designed for soldering and suitable for a wide range of power and battery connectivity applications.
1 pin Contact material: silver plated copper Housing material: nylon Current rating: 55A Voltage rating: 1000VDC Wire size: 8-6AWG Dimensions: 45.0 x 15.6mm (length x diameter)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Material | Silver Plated Copper |
| Contact Resistance | 0.60mΩ |
| Current Rating | 55A |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 1 |
| Operating Temperature | -40°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 1000VDC |
| Wire Gauge | 8-6AWG |
