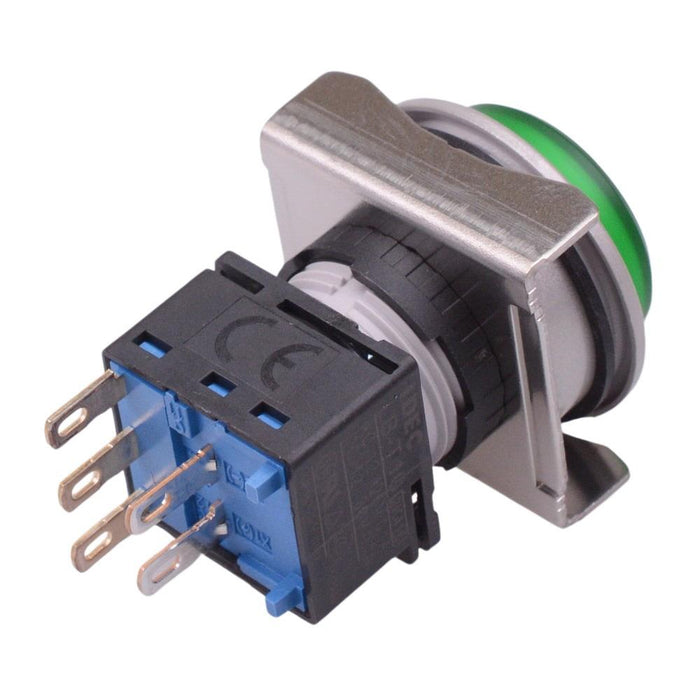

LBW6ML-M2T14G IDEC 24V Green LED Metallic Round Momentary Extended 22mm Push Button Switch SPDT
by IDEC
SKU 490082
MPN: LBW6ML-M2T14G
Availability:
25 in stock
Original price
£29.16
-
Original price
£29.16
Original price
£29.16
Inc VAT
£29.16
-
£29.16
Current price
£29.16
Inc VAT
The LBW6ML-M2T14G is a extended operator push button switch featuring a smooth surface designed for use with busy control panels. The switch features a compact space-saving design allowing a reduced panel size while enhancing its functionality and controllability. The smooth surface design prevents particle and debris from accumulating and make regular cleaning a breeze. The LBW series is designed for applications including medical devices, food and beverage processing equipment, semi-conductor equipment, demo equipment, home automation and robotic control systems where a hygienic surface is required.
Round black bezel Momentary operation Extended operator Gold SPDT contacts Green LED illumination 24VAC/DC LED operating voltage Solder/tab 2.8x0.5mm terminals Rating: 250V 5A Panel cut-out: 22.3mm Panel thickness: 0.5-3.2mm Dimensions: 41.5 x 26mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact configuration | SPDT |
| Contact material | Gold |
| Contact rating | 5A 250V |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Head type | Round |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 24V |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 22.3mm |
| Panel thickness | 0.5-3.2mm |
| Product series | LBW |
| Protection level | IP65 |
| Terminal type | Solder/tab |
| Voltage rating | 250V |
