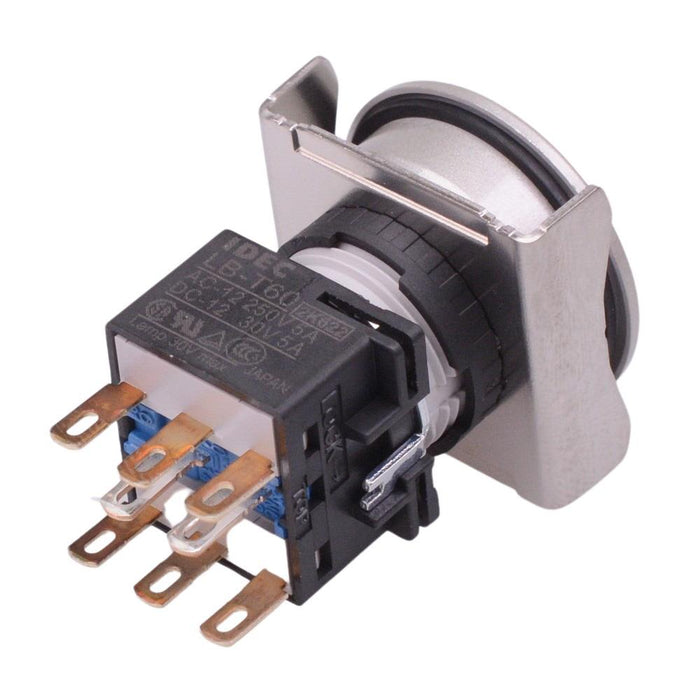

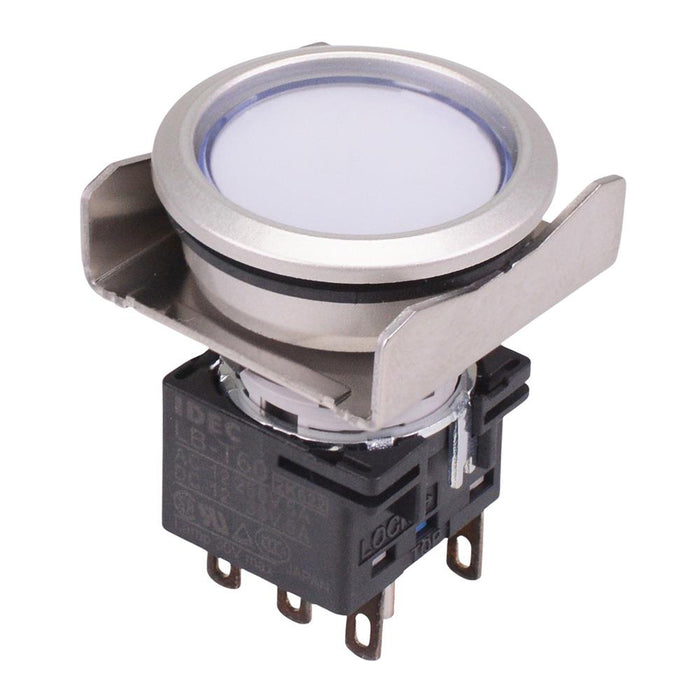

LBW6ML-A1T64PW IDEC 24V White LED Metallic Round Latching Flush 22mm Push Button Switch DPDT
by IDEC
SKU 490079
MPN: LBW6ML-A1T64PW
Availability:
25 in stock
Original price
£33.62
-
Original price
£33.62
Original price
£33.62
£35.30
£35.30
-
£35.30
Current price
£35.30
The LBW6ML-A1T64PW is a flush mount push button switch featuring a smooth surface designed for use with busy control panels. The switch features a compact space-saving design allowing a reduced panel size while enhancing its functionality and controllability. The smooth surface design prevents particle and debris from accumulating and make regular cleaning a breeze. The LBW series is designed for applications including medical devices, food and beverage processing equipment, semi-conductor equipment, demo equipment, home automation and robotic control systems where a hygienic surface is required.
Round black bezel Maintained operation Flush operator Silver DPDT contacts Pure white LED illumination 24VAC/DC LED operating voltage Solder/tab 2.8x0.5mm terminals Rating: 250V 5A Panel cut-out: 22.3mm Panel thickness: 0.5-3.2mm Dimensions: 36.9 x 26mm (height x diameter)
Specification
| Actuation | Latching |
| Colour | White |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Head Type | Round |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.5-3.2mm |
| Product Series | LBW |
| Protection Level | IP65 |
| Terminal Type | Solder/tab |
| Voltage Rating | 250V |
