![Latching On-On Foot Switch DPDT Side Mount Terminals](http://pro.maplin.co.uk/cdn/shop/files/65309124-f582-4857-81b3-a53053d03400_723x700.jpg?v=1687212432)

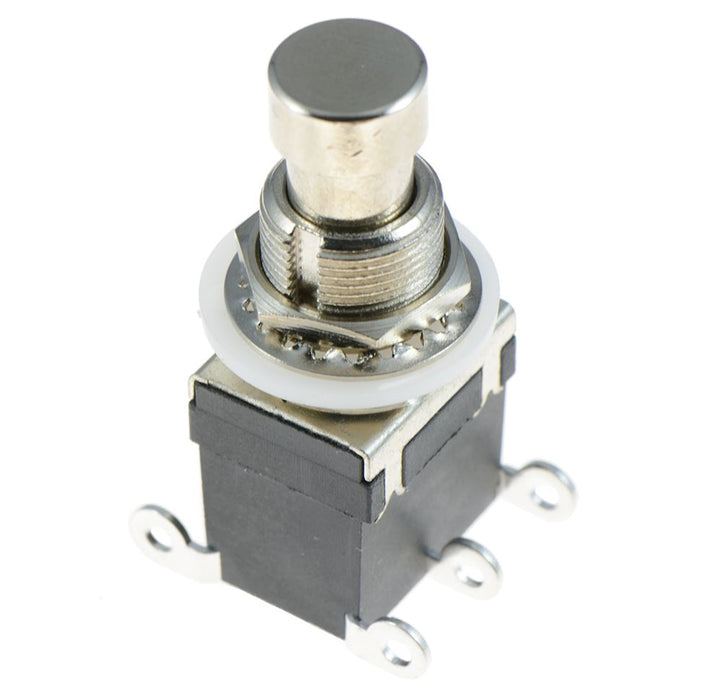

Latching On-On Foot Switch DPDT Side Mount Terminals
SKU 119001
MPN: 119001
Availability:
78 in stock
Original price
£4.05
-
Original price
£4.05
Original price
£4.05
Inc VAT
£4.05
-
£4.05
Current price
£4.05
Inc VAT
DPDT footswitch with a latching push button action, ideal for machinery and music applications including foot pedals.
DPDT contacts Latching action Side mounted solder terminals Suitable for panel mounting and secured by nut Panel cut-out: 12mm Maximum Panel Thickness: 4mm Dimensions: 42.5 x 17.2 x 23.5mm (Height x Length x Width)
Specification
Actuation | Latching |
Back order lead time | 45 Days |
Contact configuration | DPDT |
Contact rating | 2A 250VAC |
Current rating | 2A |
Electrical life | 10,000 Cycles |
Illuminated | No |
Illumination colour | Non Illuminated |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +85°C |
Panel cut out | 12mm |
Switch operation | On-On |
Terminal type | Solder |
Voltage rating | 250VAC |
