Latching 7x7mm PCB Push Button Switch DPDT 100mA 30VDC
by Canal
SKU 491861
MPN: PS701L
Availability:
Out of stock
Sold out
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
£0.58
-
£0.58
Current price
£0.58

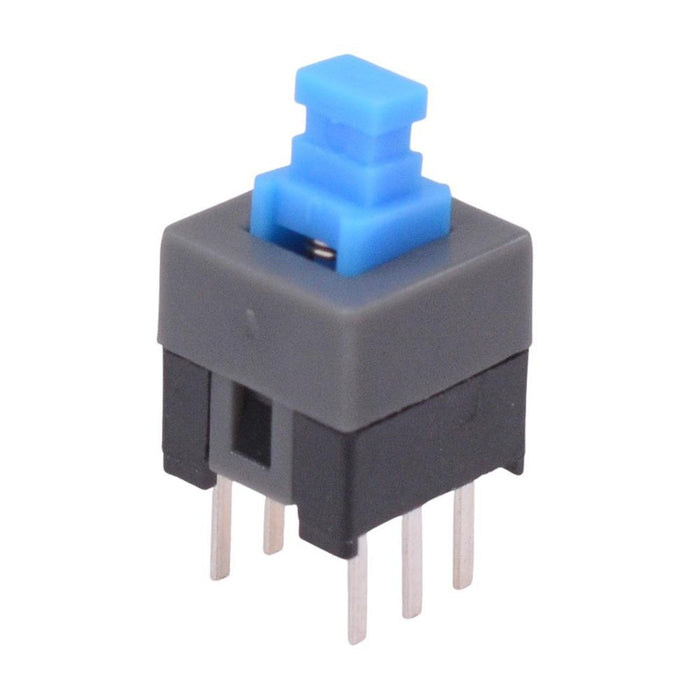

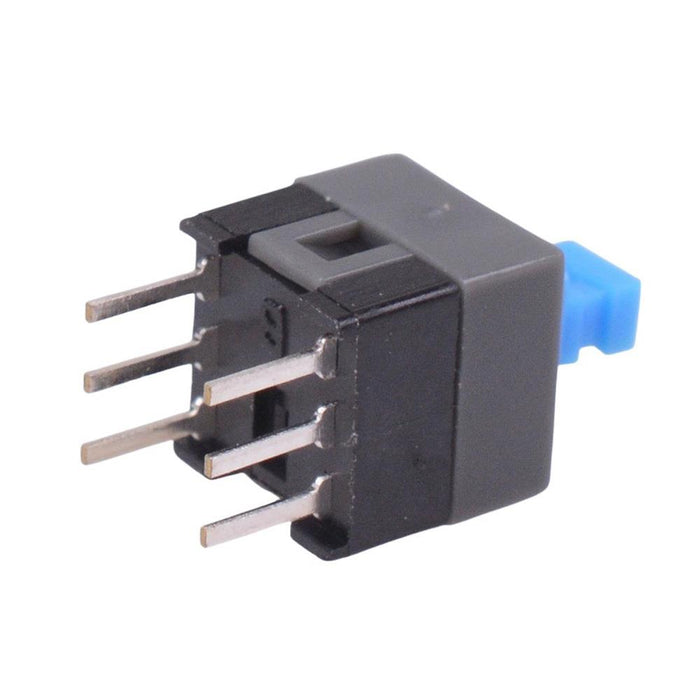

Latching push button switch featuring DPDT contacts and housed in a square 7x7mm package. The switch features PCB terminals designed for through hole mounting and 100mA 12VDC rating. The 3x2mm actuator is compatible with a wide range of caps, making the switch popular for PCB assembly and replacement applications.
Latching function DPDT contacts Package: 7x7mm Rating: 0.1A 12VDC Pin pitch: 2.0 x 5.0mm Actuator size: 3.0 x 2.0mm Operating force: 160gf Electrical life: 10,000 cycles
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 0.1A 12VDC |
| Current Rating | 0.1A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 160gf |
| Operating Temperature | -25°C to +65°C |
| Pitch | 2.0 x 5.0mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 12VDC |
