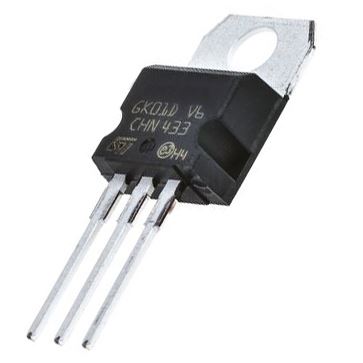

L7809CV +9V Voltage Regulator 1.5A ST

by ST
SKU 551138

MPN: L7809CV

Availability:
Out of stock
Sold out
Original price £0.71 - Original price £0.71
Original price
£0.71 Inc VAT
£0.71 - £0.71
Current price £0.71 Inc VAT
Three terminal voltage regulator providing a fixed 9V output and 1.5A regulated output current. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. These devices can be used with external components to obtain adjustable voltage and currents.

  • Output Voltage: 9V
  • Output Current: 1A
  • Package: TO-220
  • Maximum Input Voltage: 35V
  • Specification
    Back order lead time 5 Days
    Dropout voltage 2V
    Maximum input voltage 35V
    Maximum output current 1.5A
    Mounting type Through Hole
    Number of pins 3
    Output type Fixed
    Output voltage 9V
    Package TO-220
    Temperature range 0°C to +125°C
