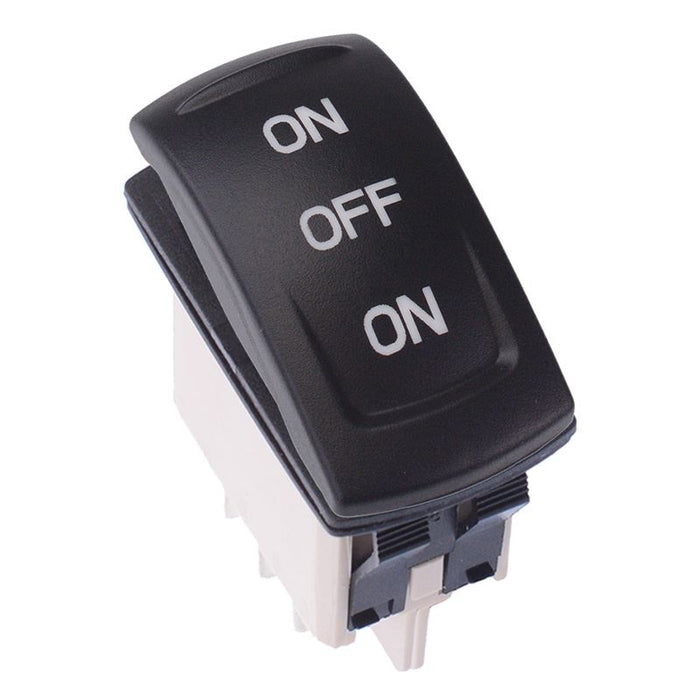

KR49CAKXXG22N010201 ON OFF ON Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 932850
MPN: KR49CAKXXG22N010201
Availability:
Out of stock
Sold out
Original price
£25.58
-
Original price
£25.58
Original price
£25.58
£25.58
-
£25.58
Current price
£25.58
The KR49CAKXXG22N010201 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-Off-On DPDT contacts
Solder / quick connect terminals
10 terminals for use with U2292
Silver contacts
Sealed to IP68
Specification
| Actuation | Latching |
| Back Order Lead Time | 5 Days |
| Contact Configuration | DPDT |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 2-3.5mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
