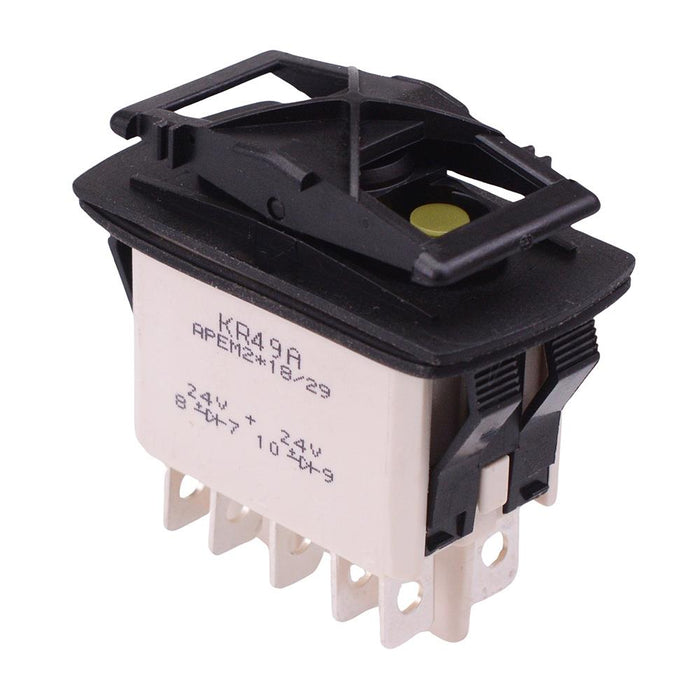

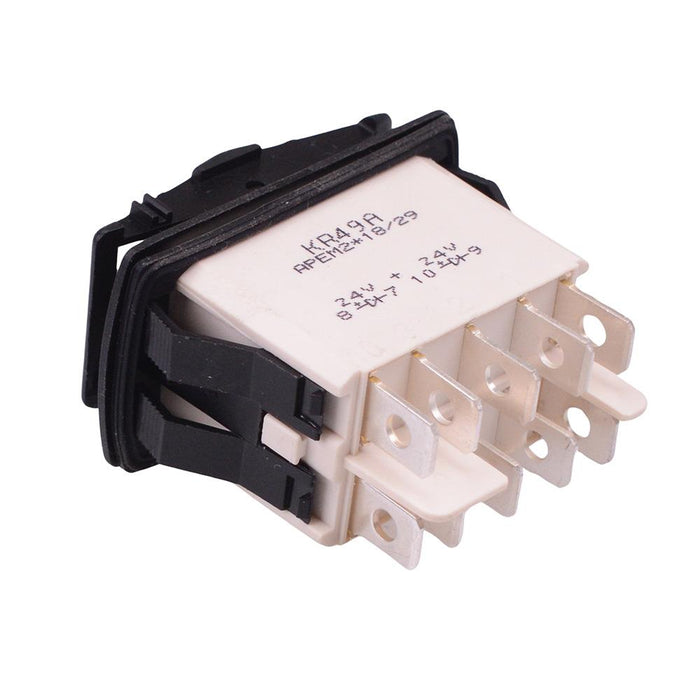

KR49CAKLLG On-Off-On Auto Rocker Switch Yellow 24V illuminated DPDT IP68

by APEM
SKU 490055

MPN: KR49CAKLLG

Availability:
110 in stock
Original price £0
Original price £15.22 - Original price £15.22
Original price
Current price £15.22(inc. VAT)
£15.22 - £15.22
Current price £15.22
 More payment options
The KR49CAKLLG is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • On-Off-On DPDT contacts
  • Solder/Quick connect terminals
  • IP68 Rated Protection
  • 24V Yellow illumination
  • Silver contacts
  • Rating: 5A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Compatible with U2292 and U3152 connector
  • Specification
    Actuation Latching
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 5A 24VDC
    Current Rating 5A
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 24V
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8mm to 4.6mm
    Protection Level IP68
    Switch Operation On-Off-On
    Terminal Type Quick Connect
    Voltage Rating 24VDC
