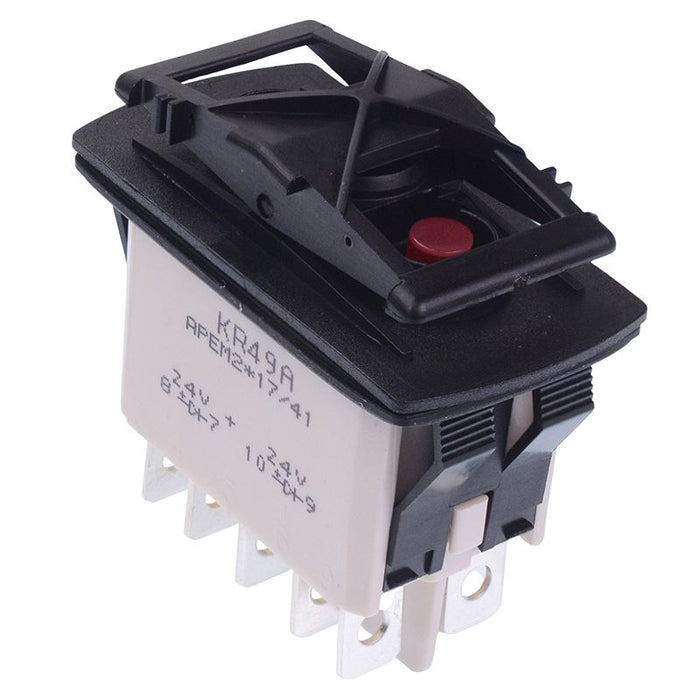

KR49CAKJJG On-Off-On Red 24V LED Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 486053
MPN: KR49CAKJJG
Availability:
Only 4 left!
Original price
£24.70
-
Original price
£24.70
Original price
£24.70
£24.70
-
£24.70
Current price
£24.70
The KR49CAKJJG is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68 and available with laser etched symbols. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-Off-On DPDT contacts Red 24V LED Solder / quick connect terminals 10 terminals for use with U2292 Silver contacts Sealed to IP68 Please note actuator is not included
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 2-3.5mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
