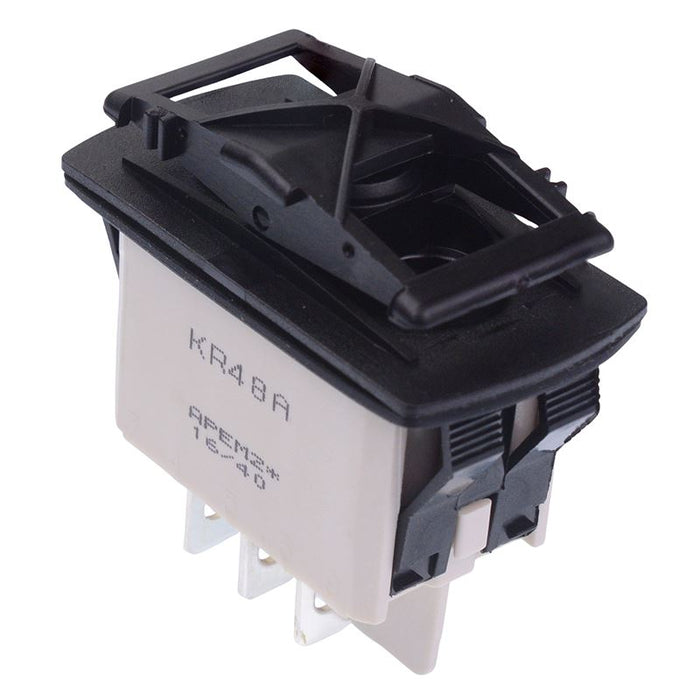

KR48CAKXXG On-Off-(On) Momentary Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 486051
MPN: KR48CAKXXG
Availability:
Only 4 left!
Original price
£24.04
-
Original price
£24.04
Original price
£24.04
£24.04
-
£24.04
Current price
£24.04
The KR48CAKDXG is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68 and available with laser etched symbols. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-Off-(On) Momentary DPDT contacts
Solder / quick connect terminals
10 terminals for use with U2292
Silver contacts
Sealed to IP68
Please note actuator is not included
Specification
| Actuation | Latching / Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | No |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 2-3.5mm |
| Protection Level | IP68 |
| Switch Operation | On-Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
