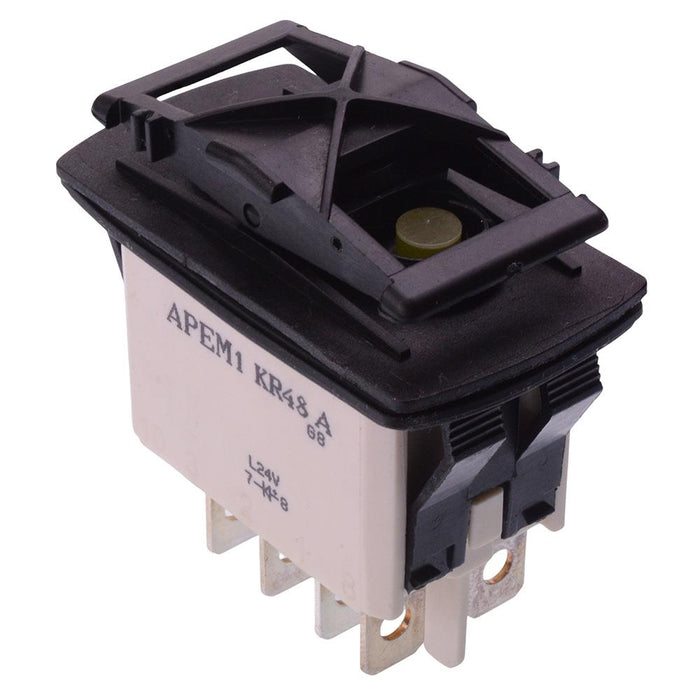

KR48CAKLXG APEM On-Off-(On) Momentary Yellow LED 24V Automotive Rocker Switch DPDT IP68

by APEM
SKU 487898

MPN: KR48CAKLXG

Availability:
20 in stock
Original price £15.75 - Original price £15.75
Original price
£15.75 Inc VAT
£15.75 - £15.75
Current price £15.75 Inc VAT
The KR48CAKLXG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring On-Off-(On) momentary function and yellow 24V LED. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Yellow 24V LED in 1 position
  • On-Off-(On) momentary DPDT contacts
  • Solder / quick connect terminals
  • Silver contacts
  • Protection level: IP68
  • Compatible with U2292 and U3152 connectors
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 10A 24VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 24VDC
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Protection level IP68
    Switch operation On-Off-(On)
    Terminal type Quick Connect
    Voltage rating 24VDC
