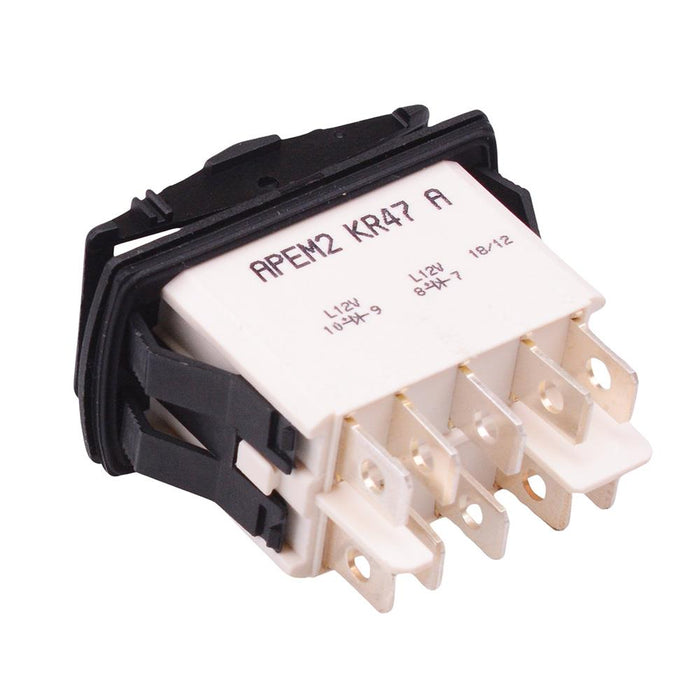

KR47CAKFFG (On)-Off-(On) Auto Rocker Switch Yellow 12V illuminated DPDT IP68
by APEM
SKU 490050
MPN: KR47CAKFFG
Availability:
43 in stock
Original price
£18.26
-
Original price
£18.26
Original price
£18.26
Inc VAT
£18.26
-
£18.26
Current price
£18.26
Inc VAT
The KR47CAKFFG is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
(On)-Off-(On) DPDT contacts Solder/Quick connect terminals 12V Yellow illumination IP68 Rated Protection Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Momentary |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 12V |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8mm to 4.6mm |
| Protection level | IP68 |
| Switch operation | (On)-Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
