KR46CAKXXG22NXXXX48 APEM Latching Automotive Rocker Switch DPDT IP68

by APEM
SKU 932791

MPN: KR46CAKXXG22NXXXX48

Availability:
Out of stock
Sold out
Original price £23.90 - Original price £23.90
Original price
£23.90 Inc VAT
£23.90 - £23.90
Current price £23.90 Inc VAT

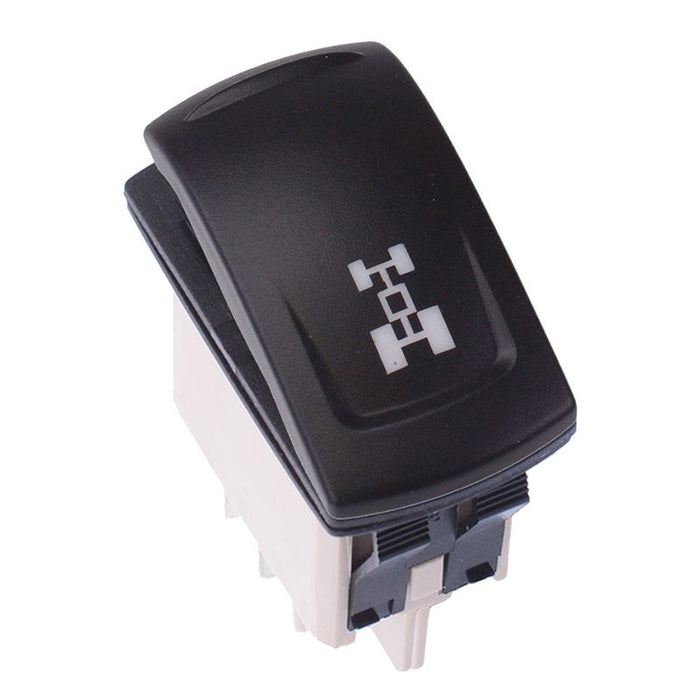

The KR46CAKXXG22NXXXX48 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.

  • On-On DPDT contacts
  • Solder / quick connect terminals
  • 10 terminals for use with U2292
  • Silver contacts
  • Sealed to IP68
  • Specification
    Actuation Latching
    Back order lead time 5 Days
    Contact configuration DPDT
    Contact rating 5A 24VDC
    Current rating 5A
    Illuminated No
    Material PA66
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 2-3.5mm
    Protection level IP68
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 24VDC
