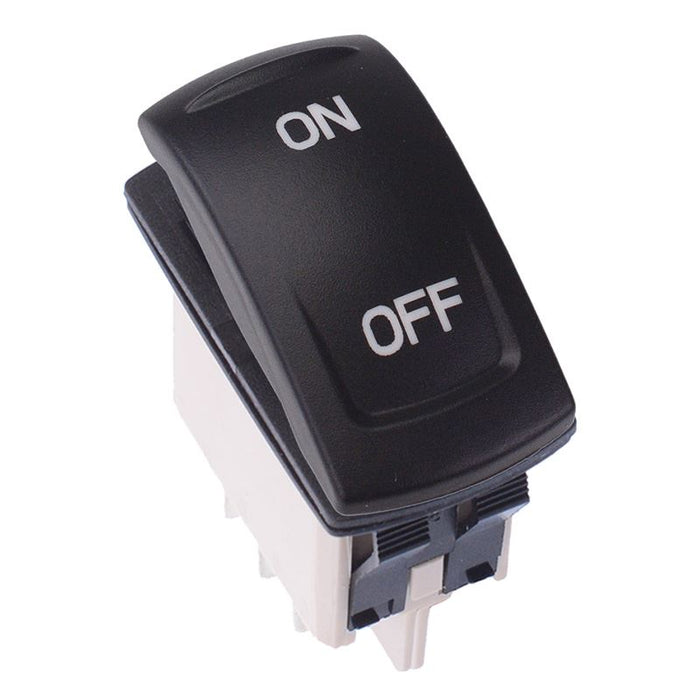

KR46CAKXXG22N01XX02 APEM ON OFF Latching Automotive Rocker Switch DPDT IP68
by APEM
SKU 932842
MPN: KR46CAKXXG22N01XX02
Availability:
Out of stock
Sold out
Original price
£24.85
-
Original price
£24.85
Original price
£24.85
Inc VAT
£24.85
-
£24.85
Current price
£24.85
Inc VAT
The KR46CAKXXG22N01XX02 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-On DPDT contacts Solder / quick connect terminals 10 terminals for use with U2292 Silver contacts Sealed to IP68
Specification
| Actuation | Latching |
| Back order lead time | 5 Days |
| Contact configuration | DPDT |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 2-3.5mm |
| Protection level | IP68 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
