KR46CAKXXG APEM On-On Latching Auto Rocker Switch DPDT IP68
by APEM
SKU 486046
MPN: KR46CAKXXG
Availability:
Only 4 left!
Original price
£20.29
-
Original price
£20.29
Original price
£20.29
Inc VAT
£20.29
-
£20.29
Current price
£20.29
Inc VAT

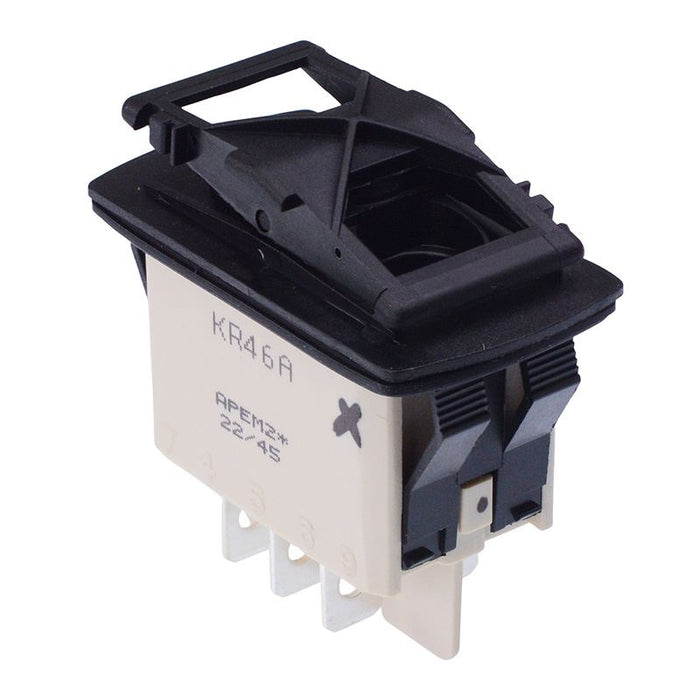

The KR46CAKXXG is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68 and available with laser etched symbols. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-On DPDT contacts Solder / quick connect terminals 10 terminals for use with U2292 Silver contacts Sealed to IP68 Please note actuator is not included
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact rating | 5A 24VDC |
| Current rating | 5A |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 2-3.5mm |
| Protection level | IP68 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
